| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
254 pcs
|
254 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Size | |
| Current Rating (Amps) | |
| Fastening Type | |
| Gasket Material | |
| Ingress Protection | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Nut Material | |
| Operating Temperature | |
| Orientation | |
| Package Type | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| X Dimension | |
| Y Dimension | |
| Z Dimension (Ref.) |

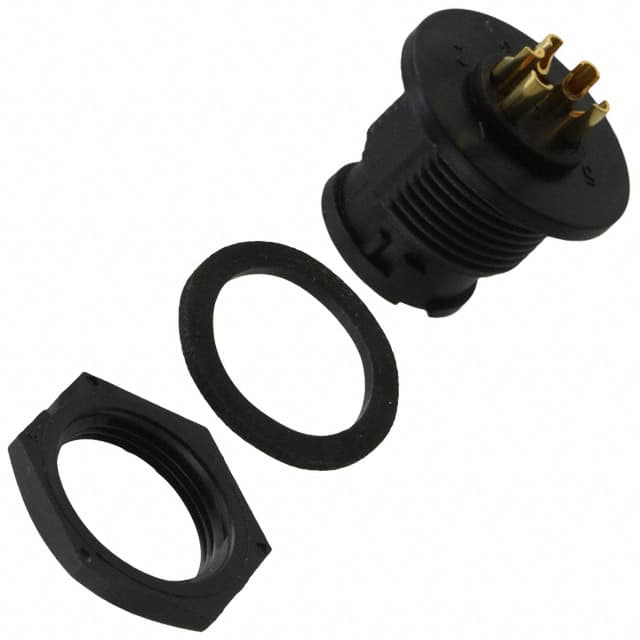

The Conxall/Switchcraft 7282-5PG-300 is a Mini-Con-X series circular connector assembly. It is a 5 position receptacle with male pins, featuring gold-plated copper alloy contacts for reliable signal integrity. The connector is designed for panel mount installation with a bulkhead front side nut and a bayonet lock fastening system for secure mating.
This connector is rated for 600V and has an operating temperature range of -40°C to 115°C. The shell is made of black polyamide (PA) nylon, and the connector is weathertight, providing ingress protection suitable for demanding environments. Termination is via solder cup, making it suitable for field wiring or custom cable assemblies.
The 7282-5PG-300 is unshielded and keyed for proper orientation. It includes a black nylon hex nut and a rubber gasket for panel sealing. This connector is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.03 | $11.03 |
| 10+ | $9.37 | $9.37 |
| 25+ | $8.78 | $8.78 |
| 50+ | $8.37 | $8.37 |
| 100+ | $7.97 | $7.97 |
| 300+ | $7.37 | $7.37 |
| 500+ | $7.11 | $7.11 |
| 1,000+ | $6.77 | $6.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with male pins.
It has 5 positions.
It is rated for 600V.
It is panel mount with a bulkhead front side nut.
It operates from -40°C to 115°C.
No, it is unshielded.
The contacts have a gold finish.
