| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Back Shell Style | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Size | |
| Contact Style | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage Rating |

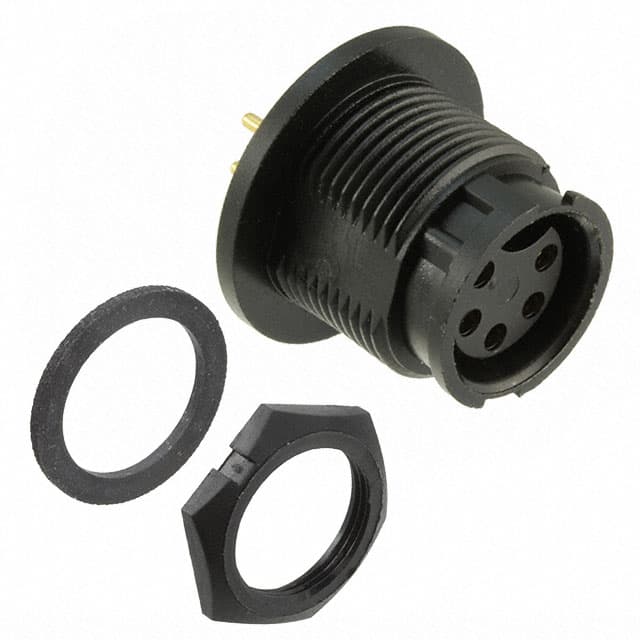

The Conxall/Switchcraft 7281-5SG-300 is a MINI-CON-X field installable panel mount receptacle. It features 5 female socket contacts (size #20) with gold over nickel plating for reliable signal integrity. The contact style is a P/C (printed circuit) tail measuring 0.187 inches (4.7 mm). The connector utilizes a bayonet lock fastening system and is keyed for correct orientation.
This part is designed for panel mount installation with a bulkhead front side nut mounting feature. It has a polyamide (nylon) shell in black and is unshielded. The electrical rating is 600V with current capacity varying by wire gauge. Operating temperature range is -40°C to +115°C. The 300 suffix indicates a panel mount configuration with hex nut and gasket for weathertight sealing.
Typical applications include industrial control systems, instrumentation, and other environments requiring a weather-resistant circular connector with solder termination to a PCB or panel.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
| 10+ | $8.22 | $8.22 |
| 25+ | $7.71 | $7.71 |
| 50+ | $7.34 | $7.34 |
| 100+ | $6.99 | $6.99 |
| 300+ | $6.47 | $6.47 |
| 500+ | $6.24 | $6.24 |
| 1,000+ | $5.94 | $5.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female socket contacts.
It has 5 positions.
Gold.
Panel mount, through hole with bulkhead front side nut.
600V.
-40°C to 115°C.
No, it is unshielded.
