| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
428,890 pcs
|
428890 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
608 pcs
|
608 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
608 pcs
|
608 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applies To | |
| Contact Finish | |
| Contact Material | |
| Disconnect Type | |
| FASTON | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Plating Thickness | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Orientation | |
| Terminal Type | |
| Termination | |
| Underplating Material |

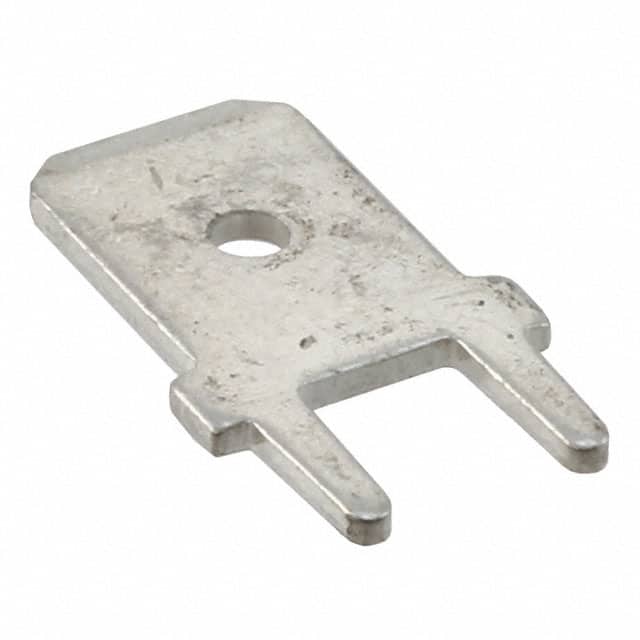

The TE Connectivity 726386-2 is a male quick disconnect tab (disconnect type: quick disconnect pin) part of the FASTON series. It is designed for printed circuit board applications and features a 6.35mm (0.250in) mating tab width and 0.81mm (0.032in) tab thickness with an overall length of 14.0mm (0.551in).
The terminal is straight in orientation and non-insulated. The contact is made of brass with a tin plating (5µm thickness) over a nickel underplating. It terminates via solder to a through hole mounting style.
The part is packed in a box with a quantity of 5000 units. It is Always EU RoHS/ELV Compliant as verified by the manufacturer's material declaration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.22 | $0.22 |
| 25+ | $0.20 | $0.20 |
| 50+ | $0.19 | $0.19 |
| 100+ | $0.19 | $0.19 |
| 250+ | $0.17 | $0.17 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.16 | $0.16 |
| 2,500+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole solder.
6.35 mm (0.250 in).
Brass with a tin plating (5 µm) over nickel underplating.
Yes, it is Always EU RoHS/ELV Compliant.
5000 units per box.
14.0 mm (0.551 in).
Tab (Quick Disconnect Pin).
