| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

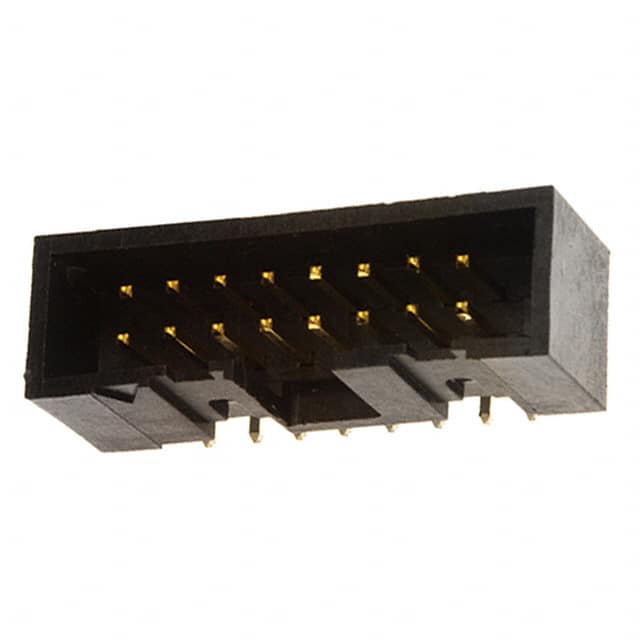

The 72454-016LF is a 16-position, 2-row header from Amphenol ICC designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with a shrouded 4-wall design for alignment and protection. The contacts are made of phosphor bronze with a tin finish (0.76µm thickness) and are rated for 1A current. The insulation is black, with a height of 9.27mm, and is made of UL94 V-0 rated material. This surface mount header includes a keying slot and is pick-and-place compatible for automated assembly. The fastening type is push-pull, and the operating temperature range is -65°C to 105°C. The termination is solder.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.33 | $2.33 |
| 10+ | $1.98 | $1.98 |
| 100+ | $1.68 | $1.68 |
| 740+ | $1.46 | $1.46 |
| 1,480+ | $1.39 | $1.39 |
| 5,180+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions, 2 rows, all positions loaded.
2.54mm (0.100 inch).
1A per contact.
Surface mount, solder termination.
-65°C to 105°C.
Tin, 0.76µm thickness.
UL94 V-0.
