| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

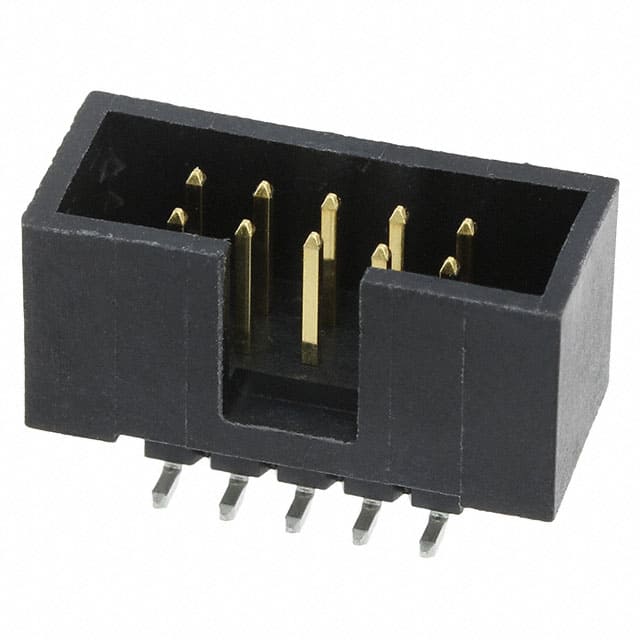

The Amphenol ICC 72454-010VLF is a 10-position header belonging to the Headers, Male Pins category. It is designed for board-to-cable or wire connections, featuring a precise 2.54mm pitch and row spacing.
Constructed with Phosphor Bronze contacts and a Tin finish, this header offers a square contact shape and a contact length of 5.84mm. It has a current rating of 1A and an insulation height of 9.27mm. The operating temperature range is from -65°C to 105°C, and the material flammability rating is UL94 V-0.
This header is shrouded with 4 walls for enhanced protection and features a keying slot and pick-and-place capability for automated assembly. The mounting type is Surface Mount, and it utilizes a Push-Pull fastening system for secure connections. The termination method is Solder.
Additional features include a black insulation color. This component is suitable for applications requiring reliable connections in a compact form factor, with considerations for environmental resistance and ease of assembly.
The header has 10 positions.
The pitch is 2.54mm (0.100").
The current rating is 1A.
The operating temperature range is -65°C to 105°C.
The mounting type is Surface Mount.
The contact material is Phosphor Bronze.
The material flammability rating is UL94 V-0.
