| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Color | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Accommodation | |
| Fuse Holder | |
| Fuse Holder, Drawer | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Package / Case | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Recommended Fuse Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

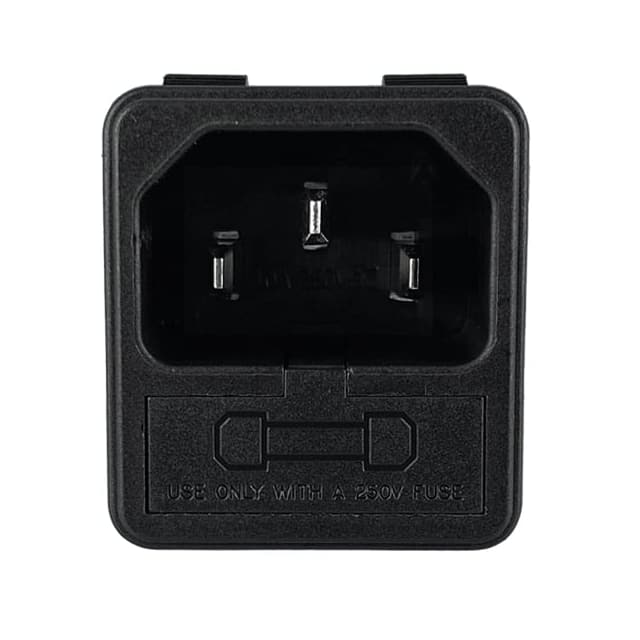

The Qualtek 723W-X2/04 is an IEC 60320 C14 AC power inlet module designed for panel mount applications. It features a snap-in mounting style and quick connect 0.250" (6.3mm) terminals for easy installation. The module includes a dual fuseholder with one active and one spare position, accepting 5x20mm fuses (not included).
Electrical ratings are 10A at 250VAC. The housing is made of Nylon #66 in black color, and the panel thickness range is 0.79mm to 2.00mm. The part carries approvals from UL, CSA, TUV, and CCC, and is RoHS3 and REACH compliant.
This power entry module is suitable for a wide range of commercial and industrial equipment requiring a reliable IEC C14 inlet with integrated fuse protection. The snap-in design simplifies assembly and provides secure mounting in various panel cutout configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
| 10+ | $2.31 | $2.31 |
| 25+ | $2.17 | $2.17 |
| 50+ | $2.06 | $2.06 |
| 100+ | $1.97 | $1.97 |
| 300+ | $1.82 | $1.82 |
| 500+ | $1.75 | $1.75 |
| 1,000+ | $1.67 | $1.67 |
| 2,500+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A.
250VAC.
Panel Mount, Snap-In.
No, fuses are not included. Recommended fuse size is 5x20mm.
UL, CSA, TUV, CCC.
Yes, RoHS3 compliant.
