| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
492 pcs
|
492 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Termination |

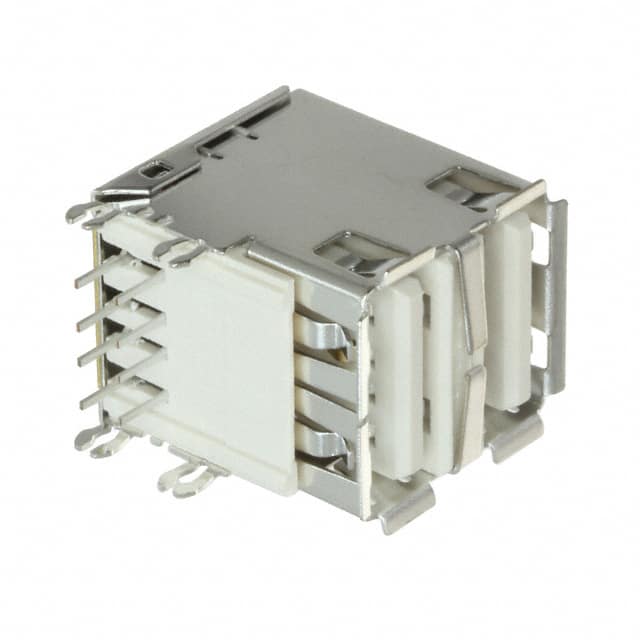

The 72309-8044BLF is a USB 2.0 Type-A stacked receptacle connector from Amphenol ICC (FCI). It features a dual-port stacked design with 8 total contacts (4 per port) and is rated for 1.5A per contact. The connector uses through hole right angle mounting for horizontal PCB orientation and includes a board lock feature for secure attachment.
This shielded connector is designed for USB 2.0 applications and is rated for 1500 mating cycles. It operates over a temperature range of -55°C to 85°C, making it suitable for a wide variety of environments. Termination is via solder pins.
The connector is packaged in a tube. It is commonly used in applications requiring two USB Type-A ports in a compact, space-saving stacked configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
| 10+ | $1.59 | $1.59 |
| 41+ | $1.44 | $1.44 |
| 82+ | $1.37 | $1.37 |
| 123+ | $1.33 | $1.33 |
| 287+ | $1.25 | $1.25 |
| 533+ | $1.20 | $1.20 |
| 1,025+ | $1.14 | $1.14 |
| 2,501+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB-A (USB TYPE-A), Stacked receptacle.
8 contacts and 2 ports.
USB 2.0.
Through hole, right angle, horizontal orientation.
Yes, it is shielded and includes a board lock feature.
1.5A per contact.
-55°C to 85°C.
