| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Style | |
| Mating Length | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage |

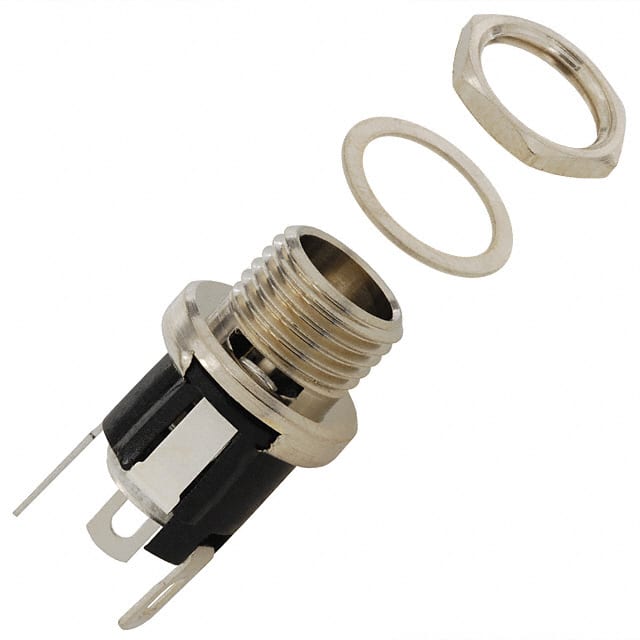

The Conxall/Switchcraft 722A is a straight DC power jack designed for panel mount applications. It features a 2.00mm (0.079") inner diameter pin and a 5.50mm (0.217") outer diameter barrel, with a male gender and 3 contacts (2 conductors). The jack includes a single switch, normally closed, and is terminated via solder eyelets. Mounting hardware and thread lock are included for secure installation. The part is rated for 5A current. Voltage rating is specified as 48V by distributor but manufacturer datasheet indicates 24V DC resistive; please verify with manufacturer. The mounting feature is bulkhead with front side nut. It is unshielded. RoHS3 compliant and REACH unaffected per distributor data (unverified documentation).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.55 | $4.55 |
| 10+ | $3.87 | $3.87 |
| 25+ | $3.62 | $3.62 |
| 50+ | $3.45 | $3.45 |
| 100+ | $3.29 | $3.29 |
| 300+ | $3.04 | $3.04 |
| 500+ | $2.93 | $2.93 |
| 1,000+ | $2.79 | $2.79 |
| 2,500+ | $2.62 | $2.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors, 3 contacts.
5 A.
The distributor specifies 48V, but the manufacturer datasheet states 24V DC resistive. Please verify with the manufacturer.
Panel mount with bulkhead front side nut.
Yes, a single normally closed switch.
2.00mm ID (0.079").
