72235LB15TF The Integrated Device Technology 72235LB15TF is a FIFO memory integrated circuit. It operates at 5V with a cycle time of 15 ns and an access time of 10 ns.
Mfr Part #:

72235LB15TF

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The Integrated Device Technology 72235LB15TF is a FIFO memory integrated circuit. It operates at 5V with a cycle time of 15 ns and an access time of 10 ns.
✓ Total Stock: 11 pcs
$ Price Range: $1.50

72235LB15TF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

72235LB15TF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Bus Directional
Expansion Type
Frequency
Memory Size
Mounting Type
Operating Temperature
Retransmit Capability
SVHC Present
Supply Voltage
Tape & Reel
Thickness
View Similar Products (0)

72235LB15TF Description

Short technical summary and product information.

The Integrated Device Technology 72235LB15TF is a synchronous FIFO memory IC with a 2K x 18 organization, providing a total memory size of 36K. It features a cycle time of 15 ns and an access time of 10 ns, operating at a frequency of 66.7 MHz.



This component requires a power supply of 5V, with a minimum supply voltage of 4.5V and a maximum supply current of 60mA. The operating temperature range is from 0°C to 70°C. The device supports unidirectional data flow and has a parallel interface.

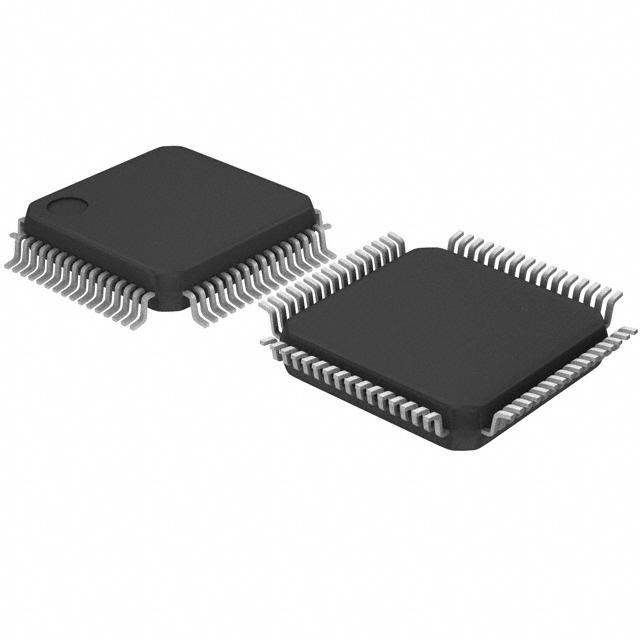

Packaged in a 64-TQFP surface mount configuration, the 72235LB15TF has a terminal pitch of 0.5mm and a thickness of 1.4mm. The terminal plating is Tin/Lead (Sn85Pb15). The standard package quantity is 32 units, and it is available on tape and reel.



Compliance includes RoHS3 status. The publication year for this part is 2009.

72235LB15TF Quick Information

Product Type: FIFO Memory
Series: 7200
Canonical Name: Integrated Device Technology 72235LB15TF FIFO Memory
Subcategory: FIFO Memory

72235LB15TF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

72235LB15TF Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

72235LB15TF Features

  • Synchronous FIFO memory with 2K x 18 organization.
  • 15 ns cycle time and 10 ns access time.
  • Operates at a 5V supply voltage.
  • 64-pin TQFP surface mount package.
  • Published in 2009.

72235LB15TF Applications

  • High-speed data buffering applications.
  • Systems requiring synchronous data transfer.
  • Embedded systems design.
  • Digital signal processing.

72235LB15TF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the cycle time for the 72235LB15TF FIFO Memory?

The cycle time for the 72235LB15TF is 15 ns.

What is the access time of the 72235LB15TF?

The access time for the 72235LB15TF is 10 ns.

What is the operating voltage for this FIFO memory?

The operating supply voltage for the 72235LB15TF is 5V.

What is the operating temperature range for the 72235LB15TF?

The operating temperature range is 0°C to 70°C.

What type of package is the 72235LB15TF in?

The 72235LB15TF is in a 64-TQFP package.

How is the 72235LB15TF mounted?

The 72235LB15TF is a surface mount device.
