| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Anti-rotation Protection | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Depth | |
| Drilled Hole Diameter | |
| Features | |
| Header Orientation | |
| Height | |
| Height from Surface | |
| Lead Spacing | |
| Lead Style | |
| Mating Direction to PCB | |
| Mismating Protection | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Solder Pins per Potential | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Rated Current (Nominal @ UL 1059 / CSA, Use Group B) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage category II, Pollution degree 2) | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage category III, Pollution degree 2) | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage category III, Pollution degree 3) | |
| Solder Pin Arrangement | |
| Solder Pin Dimensions | |
| Solder Pin Length | |
| Termination Style | |
| Type | |
| Variable Coding | |
| Voltage | |
| Width | |
| rated_current (Nominal @ IEC/EN 60664-1) | |
| rated_current (Nominal @ UL 1059 / CSA, Use group D) | |
| rated_voltage (Nominal @ UL 1059 / CSA, Use group B) | |
| rated_voltage (Nominal @ UL 1059 / CSA, Use group D) |

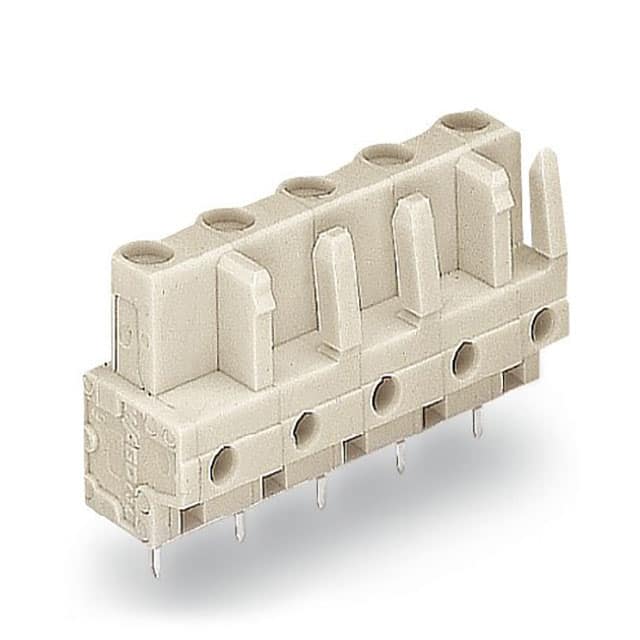

The Wago 722-734 is a 4-position THT female header from the MCS MIDI series, designed for through-hole soldering on PCBs. It features a 7.5 mm pitch and a right-angle (90°) mating direction, making it suitable for compact wiring applications.
Electrical ratings include 12 A rated current per IEC/EN 60664-1 and 15 A per UL 1059 (Use group B), with rated voltages up to 500 V (IEC/EN, overvoltage category III, pollution degree 3) and 300 V (UL/CSA). The rated impulse withstand voltage is 6 kV.
The connector is 100% protected against mismating and includes anti-rotation protection and variable coding. Contact mating finish is tin, and the housing is gray. Solder pin dimensions are 0.6 x 1.0 mm with a 5 mm length. Operating temperature range is -60°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.20 | $5.20 |
| 10+ | $4.42 | $4.42 |
| 100+ | $3.76 | $3.76 |
| 500+ | $3.35 | $3.35 |
| 1,000+ | $3.19 | $3.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Wago 722-734 has 4 positions.
The pitch is 7.5 mm.
The rated current is 12 A per IEC/EN 60664-1 and 15 A per UL 1059 (Use group B).
The rated voltage is 500 V per IEC/EN (overvoltage category III, pollution degree 3) and 300 V per UL/CSA (Use group B).
The mounting type is Through Hole (THT) with solder termination.
The operating temperature range is -60°C to 85°C.
Yes, it has 100% mismating protection, anti-rotation protection, and variable coding.
