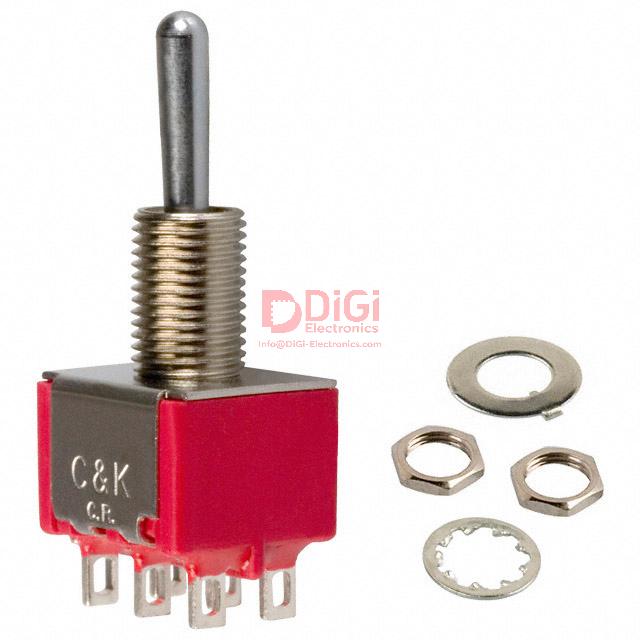

7203SYZQE The C&K 7203SYZQE is a DPDT toggle switch designed for panel mounting. It offers a 5A current rating and a 120V AC voltage rating.
Mfr Part #:

7203SYZQE

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K 7203SYZQE is a DPDT toggle switch designed for panel mounting. It offers a 5A current rating and a 120V AC voltage rating.
✓ Total Stock: 175 pcs
$ Price Range: $0.75

7203SYZQE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
175 pcs
On Request
175 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7203SYZQE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Actuator Type
Bushing Thread
Circuit
Current Rating
Features
Illumination
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
View Similar Products (0)

7203SYZQE Description

Short technical summary and product information.

The C&K 7203SYZQE is a DPDT (Double Pole, Double Throw) toggle switch suitable for panel mounting applications. It features a standard round actuator with a length of 10.67mm and is non-illuminated. The switch is rated for a current of 5A (AC/DC) and can handle AC voltages up to 120V and DC voltages up to 28V.



With a termination style of solder lug and a panel cutout dimension of 6.35mm diameter, this switch is designed for reliable connections. The bushing thread is 1/4-40. The actuator is constructed from brass with a chrome-plated finish. The switch also includes epoxy-sealed terminals for added durability and protection.



Operating within a temperature range of -30°C to 85°C, the 7203SYZQE has an electrical life of 40,000 cycles. It is part of the 7000 series and is supplied in bulk packaging.

7203SYZQE Quick Information

Product Type: Toggle Switch
Series: 7000
Canonical Name: C&K 7203SYZQE Toggle Switch
Subcategory: Toggle Switch

7203SYZQE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7203SYZQE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

7203SYZQE Features

  • DPDT toggle switch for versatile control.
  • Rated for 5A current and 120V AC.
  • Panel mount design with solder lug terminals.
  • Durable brass, chrome-plated actuator.
  • Operates from -30°C to 85°C.

7203SYZQE Applications

  • Suitable for control panel applications.
  • Used in electrical equipment switching.
  • Ideal for industrial automation.
  • Applicable in test and measurement devices.

7203SYZQE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the switch function of the C&K 7203SYZQE?

The switch function is On-Off-On.

What is the circuit type for the 7203SYZQE toggle switch?

The circuit type is DPDT.

What is the current rating of the C&K 7203SYZQE?

The current rating is 5A.

What is the AC voltage rating for this toggle switch?

The AC voltage rating is 120V.

What is the DC voltage rating for the 7203SYZQE?

The DC voltage rating is 28V.

What is the operating temperature range for the 7203SYZQE?

The operating temperature range is -30°C to 85°C.

What is the RoHS status of the C&K 7203SYZQE?

The RoHS status is RoHS3 Compliant.
