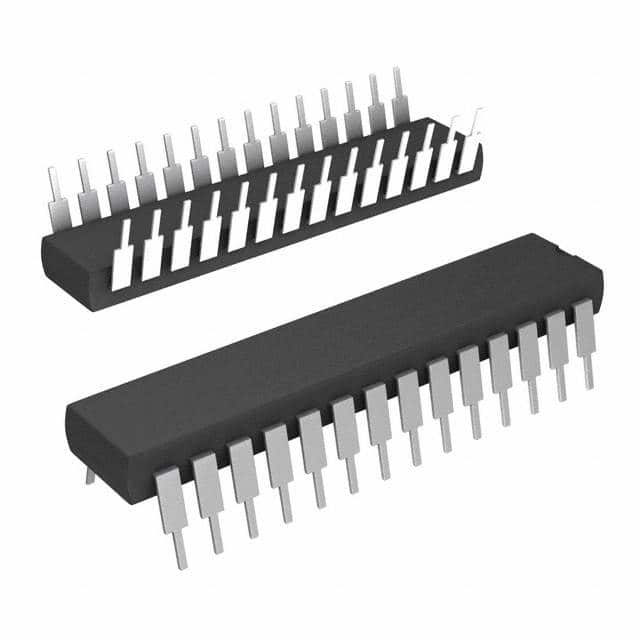

7201LA20TP The 7201LA20TP is an asynchronous FIFO memory from Integrated Device Technology. It features a 4.5Kb memory size and a 20ns access time.
Mfr Part #:

7201LA20TP

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The 7201LA20TP is an asynchronous FIFO memory from Integrated Device Technology. It features a 4.5Kb memory size and a 20ns access time.
✓ Total Stock: 723 pcs
$ Price Range: $0.99

7201LA20TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
723 pcs
On Request
723 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7201LA20TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Data Rate
Expansion Type
FWFT Support
Function
Memory Size
Mounting Type
Operating Temperature
Retransmit Capability
Supplier Package
Supply Current
Supply Voltage
View Similar Products (0)

7201LA20TP Description

Short technical summary and product information.

The 7201LA20TP is an asynchronous FIFO (First-In, First-Out) memory integrated circuit manufactured by Integrated Device Technology. This component offers a memory size of 4.5Kb, organized as 512 words by 9 bits, providing efficient data buffering capabilities.



With an access time of 20ns and a maximum data rate of 33.3MHz, the 7201LA20TP is suitable for applications requiring fast data transfer. It operates within a supply voltage range of 4.5V to 5.5V and has a maximum supply current of 80mA. The FIFO supports uni-directional data flow and features depth and width programmability.



This device is designed for through-hole mounting and comes in a 28-DIP (Dual In-line Package) with dimensions of 0.300 inches (7.62mm). The operating temperature range is from 0°C to 70°C, making it suitable for various industrial and commercial environments. The 7201LA20TP also includes retransmit capability.

7201LA20TP Quick Information

Product Type: FIFO Memory
Canonical Name: 7201LA20TP Asynchronous FIFO
Subcategory: Asynchronous FIFO

7201LA20TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7201LA20TP Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

7201LA20TP Features

  • Asynchronous FIFO memory with 4.5Kb capacity.
  • Fast 20ns access time.
  • Supports 33.3MHz data rate.
  • Operates from 4.5V to 5.5V supply.
  • Through-hole 28-DIP package.

7201LA20TP Applications

  • Ideal for data buffering applications.
  • Suitable for high-speed data transfer.
  • Used in systems requiring asynchronous communication.
  • General purpose FIFO memory needs.

7201LA20TP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the memory size of the 7201LA20TP FIFO?

The 7201LA20TP has a memory size of 4.5Kb, organized as 512 words by 9 bits.

What is the access time for the 7201LA20TP?

The access time for the 7201LA20TP is 20ns.

What is the operating supply voltage range for the 7201LA20TP?

The 7201LA20TP operates with a supply voltage range of 4.5V to 5.5V.

What type of package is the 7201LA20TP available in?

The 7201LA20TP is available in a 28-DIP (0.300", 7.62mm) package.

What is the operating temperature range for the 7201LA20TP?

The operating temperature range for the 7201LA20TP is 0°C to 70°C.
