| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Material | |
| Contact Timing | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth Behind Panel | |
| Index Stops | |
| Lead Spacing | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles per Deck | |
| Number of Positions | |
| Output | |
| Shaft Diameter | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

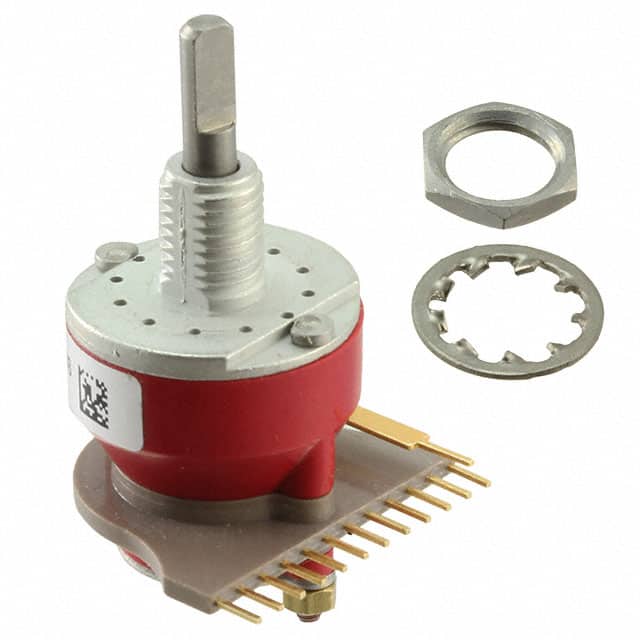

The Grayhill 71ADF30-01-1-AJS is a high-performance rotary switch from the 71 Series, designed for reliability and value. This switch features a 30° angle of throw and supports 2 to 12 positions per pole, with a shorting contact type (MBB).
With a maximum switch rating of 250mA at 30V, it is suitable for various electrical applications. The mechanical life is rated for 25,000 cycles. The switch is designed for panel mounting with a through-hole, right-angle termination style using PC pins.
The depth behind the panel is 19.33mm (0.761 inches), and it has an adjustable index stop feature. The actuator type is flatted with a 3.17mm diameter, and the shaft stop strength is 10 lbf in. This RoHS 3 compliant component is ideal for applications requiring precise rotational control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The angle of throw is 30 degrees.
The maximum current rating is 250mA (AC/DC).
There are 2 to 12 positions per pole.
It features shorting (MBB) contact timing.
The mounting type is Panel Mount, Through Hole, Right Angle.
Yes, it is RoHS 3 Compliant.
