| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
196 pcs
|
196 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

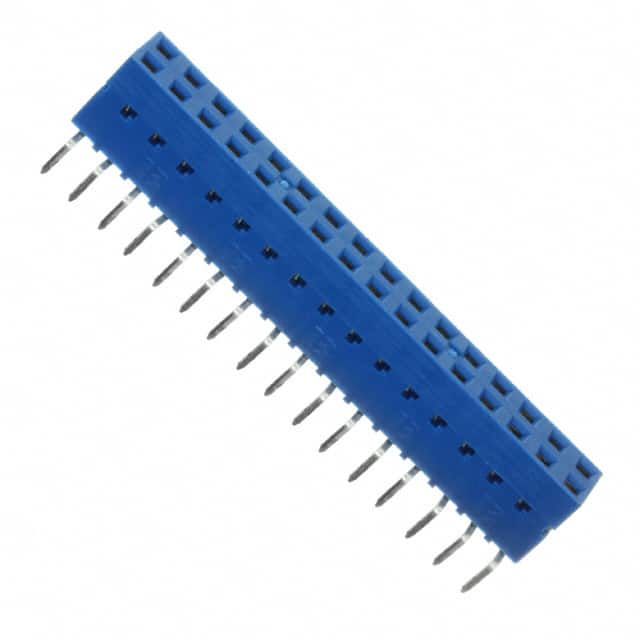

The Amphenol ICC 71991-316LF is a 32-position board-to-board receptacle designed for reliable connections in compact electronic assemblies. It features a push-pull fastening mechanism that ensures secure mating while allowing easy disconnection when needed. The connector uses a two-row configuration with 2.54mm (0.100 inch) pitch, making it compatible with standard prototyping and production PCBs.
Mechanically, this receptacle offers a through hole mounting style for robust soldered connections. The insulation is colored blue with a height of 6.99mm (0.275 inches) and is rated UL94 V-0 for flammability resistance. Mated stacking height is 11.04mm, and the contact length is 3.00mm (0.118 inches). The row spacing is also 2.54mm, maintaining consistent grid alignment.
The female socket contacts are finished with tin plating at a thickness of 30.0µin (0.76µm), providing adequate corrosion resistance. Environmental compliance is indicated as RoHS3 compliant and REACH unaffected, though these statuses are unverified. No datasheet is currently available; refer to the manufacturer for detailed electrical ratings and material specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.51 | $4.51 |
| 14+ | $3.74 | $3.74 |
| 112+ | $3.23 | $3.23 |
| 504+ | $2.90 | $2.90 |
| 1,008+ | $2.76 | $2.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions.
2.54mm (0.100 inches).
Through hole.
Blue.
Push-Pull.
Tin, with a thickness of 30.0µin (0.76µm).
UL94 V-0.
