| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,128 pcs
|
2128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style |

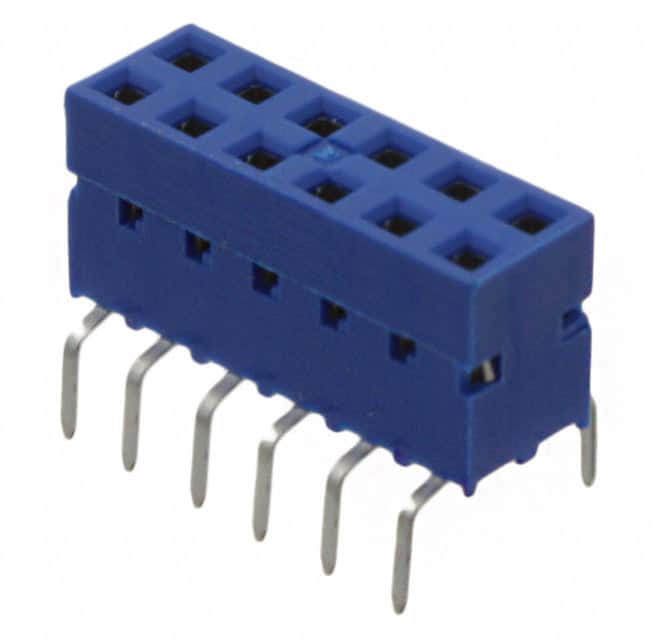

The Amphenol ICC 71991-306LF is a 12-position, 2-row rectangular connector receptacle designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, with through-hole mounting and solder termination for reliable PCB attachment. The contacts are finished with 30µin of tin, providing good solderability. The blue insulator is rated UL94 V-0 for flammability resistance. The connector supports both bottom and top entry configurations and offers a mated stacking height of 11.04mm. This receptacle is suitable for use in a variety of electronic assemblies requiring compact, reliable interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 38+ | $0.99 | $0.99 |
| 114+ | $0.91 | $0.91 |
| 532+ | $0.82 | $0.82 |
| 1,026+ | $0.78 | $0.78 |
| 5,016+ | $0.70 | $0.70 |
| 10,032+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions arranged in 2 rows.
2.54mm (0.100 inches).
Through hole with solder termination.
Tin with 30µin thickness (0.76µm).
UL94 V-0.
Board-to-board receptacle, supports bottom or top entry.
Blue.
