| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
644 pcs
|
644 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

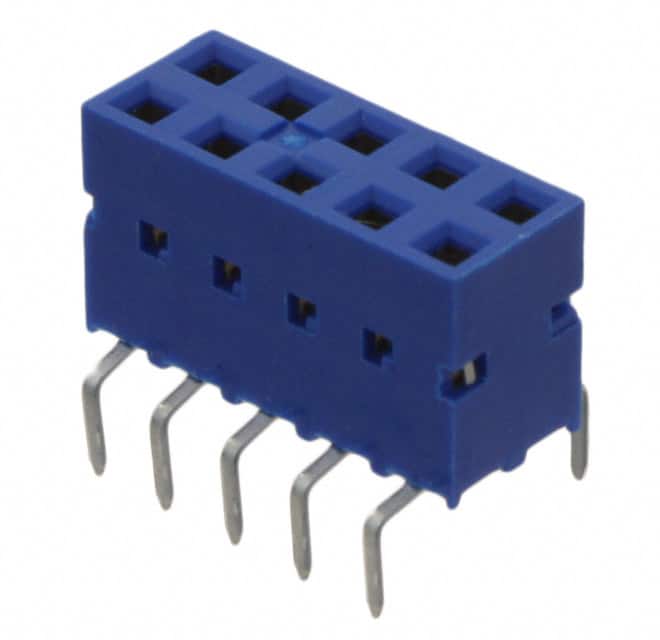

The Amphenol ICC 71991-305LF is a 10-position female socket receptacle designed for board-to-board connections. It features a 2.54mm pitch and row spacing, with through hole mounting and solder termination. The connector has a push-pull fastening type and a blue insulation. The contacts are female sockets with a tin finish (30.0µin thickness). The insulation height is 6.99mm, and the mated stacking height is 11.04mm. The contact length is 3.00mm. The connector is rated with a material flammability rating of UL94 V-0. This part is listed as RoHS3 Compliant and REACH Unaffected (both unverified) and has MSL 1 (unlimited). It is suitable for applications requiring reliable interconnection between PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 46+ | $1.57 | $1.57 |
| 138+ | $1.45 | $1.45 |
| 506+ | $1.33 | $1.33 |
| 1,012+ | $1.26 | $1.26 |
| 5,014+ | $1.13 | $1.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through hole mounting with solder termination.
Tin finish with 30.0µin (0.76µm) thickness.
Blue.
