| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,617 pcs
|
1617 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

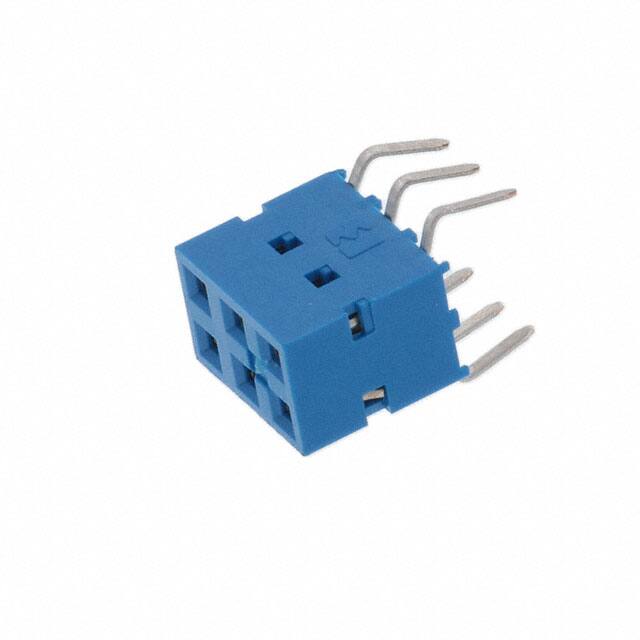

The Amphenol ICC 71991-303LF is a 6-position, 2-row female socket receptacle designed for board-to-board stacking applications. It features a 2.54mm (0.100") pitch with 0.100" row spacing, making it ideal for standard spacing requirements. The receptacle supports bottom or top entry and uses a push-pull fastening mechanism.
This through-hole component is terminated via solder, providing reliable connections. The contacts are made with tin finish, with a thickness of 30.0µin (0.76µm), and have a contact length of 3.00mm. The insulator is blue and rated UL94 V-0 for flammability, ensuring safety in various applications. The mated stacking height is 11.04mm.
The 71991-303LF is suitable for use in electronic assemblies where a compact, low-profile interconnect is needed. Its 2-row configuration and 6 contacts allow for efficient signal routing. The part is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.38 | $1.38 |
| 77+ | $1.01 | $1.01 |
| 154+ | $0.96 | $0.96 |
| 539+ | $0.88 | $0.88 |
| 1,001+ | $0.85 | $0.85 |
| 5,005+ | $0.75 | $0.75 |
| 10,010+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
Through hole.
Tin, with a thickness of 30.0µin (0.76µm).
UL94 V-0.
It is listed as RoHS3 compliant, but this has not been verified.
11.04mm.
