| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

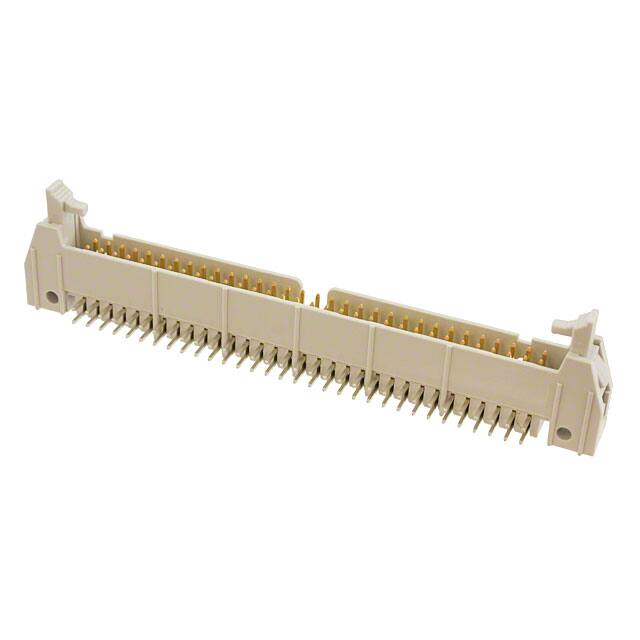

The 71922-264LF is a 64-position, 2-row shrouded male pin header manufactured by Amphenol ICC. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for standard board-to-cable/wire applications. The right-angle through-hole mounting type allows for compact PCB layouts where connectors are placed at the board edge.
The connector is shrouded on all four walls, providing protection for the male pins and preventing misalignment during mating. It includes short latch lock/eject hooks for secure latching with compatible receptacles. The insulation is made from thermoplastic, glass-filled material rated UL94 V-0 and colored gray for easy identification.
Contacts are made of phosphor bronze with a tin finish (30.0µin). The contact length is 5.80mm, and the insulation height is 8.61mm. Features include a keying slot and mounting flange for additional mechanical security. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.28 | $5.28 |
| 10+ | $4.49 | $4.49 |
| 300+ | $3.53 | $3.53 |
| 600+ | $3.36 | $3.36 |
| 1,200+ | $3.20 | $3.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
64 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through-hole, right angle with solder termination.
Phosphor bronze with tin finish (30µin / 0.76µm).
Glass-filled thermoplastic rated UL94 V-0, colored gray.
Yes, it includes latch lock/eject hooks and a mounting flange.
Listed as RoHS3 Compliant (unverified).
