| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

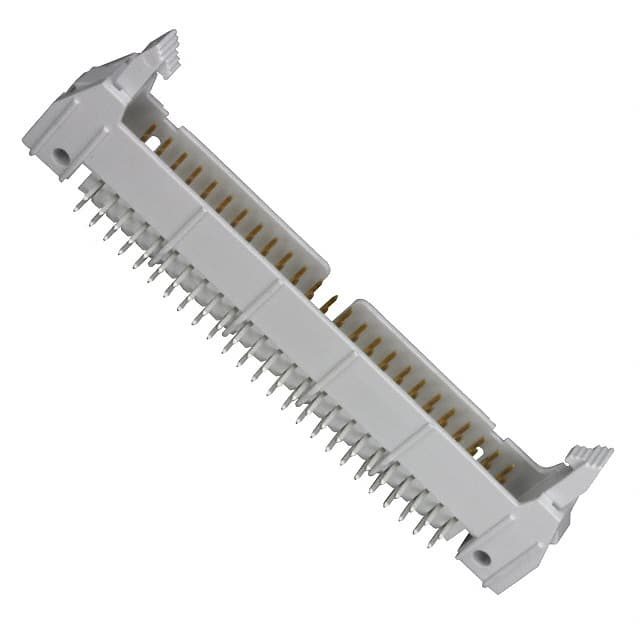

The Amphenol ICC 71922-150LF is a 50 position, 2-row, right angle through-hole shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with all 50 positions loaded. The connector uses phosphor bronze contacts with a tin finish (30.0µin thickness) and a square contact shape. The housing is made of gray thermoplastic, glass filled material with a UL94 V-0 flammability rating. The header includes a keying slot and mounting flange for secure alignment and attachment. Fastening is provided by latch lock/eject hooks. The insulation height is 8.61mm (0.339") and the contact length is 5.80mm (0.228"). Termination is via solder.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.43 | $4.43 |
| 12+ | $3.72 | $3.72 |
| 102+ | $3.20 | $3.20 |
| 504+ | $2.85 | $2.85 |
| 1,002+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 50 positions, all loaded, in 2 rows.
Through hole, right angle.
Tin, 30.0µin (0.76µm) thickness.
Thermoplastic, glass filled with UL94 V-0 rating.
