| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
266 pcs
|
266 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

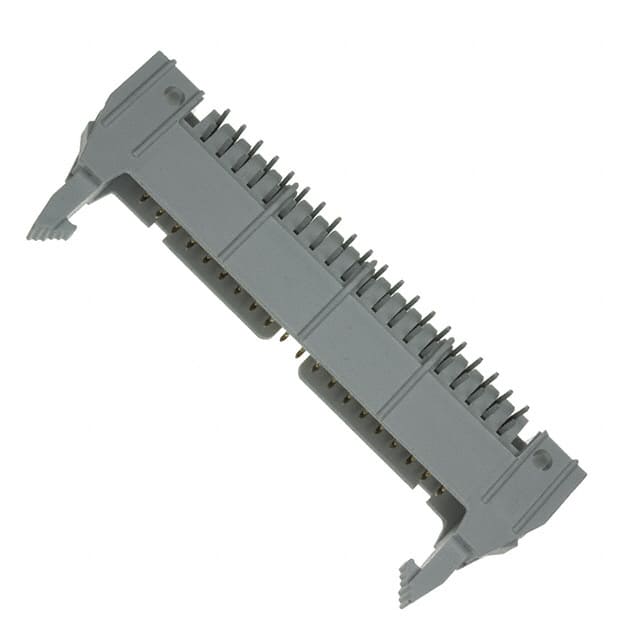

The Amphenol ICC 71922-140LF is a 40-position, 2.54mm (0.100") pitch header connector designed for board-to-cable/wire applications. It features male square pins with a tin finish (30.0µin thickness) made from phosphor bronze, providing reliable electrical contact. The connector is configured with two rows and a row spacing of 0.100" (2.54mm).
This header uses a through-hole, right-angle mounting style with solder termination, suitable for perpendicular board attachment. It has a shrouded 4-wall design with latch lock/eject hooks for secure mating and easy disconnection. Keying slots and mounting flanges are included for accurate alignment and mechanical stability.
The insulation body is molded from thermoplastic, glass-filled material in gray, rated UL94 V-0 for flammability. The contact length is 5.80mm (0.228"). All 40 positions are loaded. This RoHS3 compliant component is suitable for general-purpose interconnect applications requiring a robust, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.89 | $3.89 |
| 14+ | $3.23 | $3.23 |
| 105+ | $2.80 | $2.80 |
| 504+ | $2.51 | $2.51 |
| 1,001+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
The connector has 40 positions loaded in 2 rows.
It is through-hole, right angle mounting with solder termination.
Yes, it features a fastening type of latch lock/eject hooks.
The insulation material has a UL94 V-0 flammability rating.
