| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,199 pcs
|
1199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

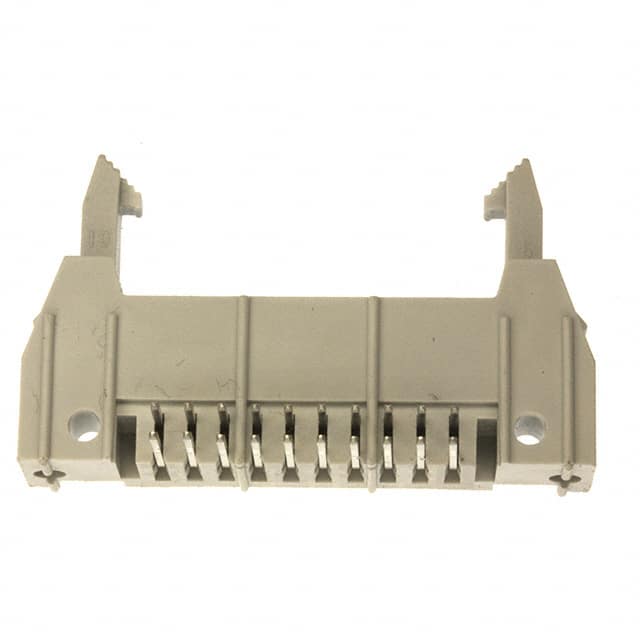

The 71922-120LF is a 20-position, 2-row, right angle shrouded header manufactured by Amphenol ICC. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for board-to-cable/wire applications. The header is through-hole mounted with solder termination and includes a keying slot and mounting flange for secure alignment.
The contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and have a square shape with a contact length of 5.80mm. The insulator is gray thermoplastic, glass filled, with a UL94 V-0 flammability rating. The shrouded 4-wall design with latch lock/eject hooks provides reliable mating and retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.47 | $2.47 |
| 11+ | $2.08 | $2.08 |
| 110+ | $1.77 | $1.77 |
| 506+ | $1.59 | $1.59 |
| 1,001+ | $1.51 | $1.51 |
| 5,005+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 20 positions arranged in 2 rows.
Through hole, right angle.
Tin with a thickness of 30.0µin (0.76µm).
Yes, it is a shrouded 4-wall design with latch lock/eject hooks.
The insulator is glass-filled thermoplastic with a UL94 V-0 rating.
