| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
825 pcs
|
825 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

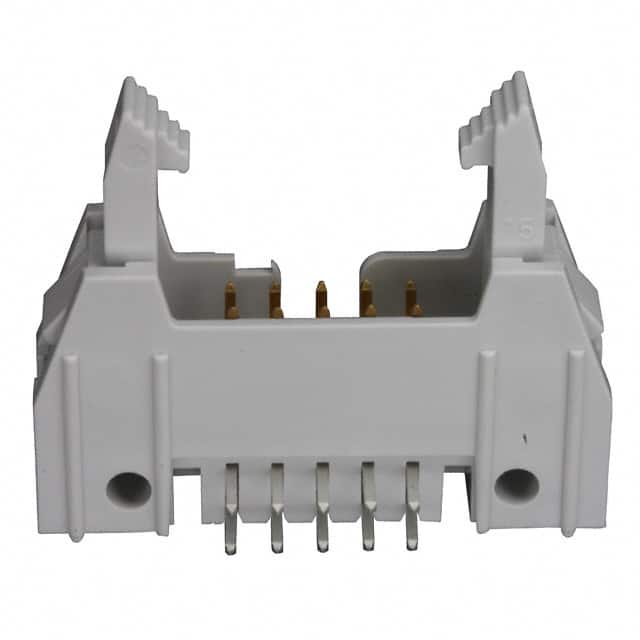

The Amphenol ICC 71922-110LF is a 10-position, 2-row, 2.54mm pitch rectangular header connector with male pins. It features a shrouded 4-wall housing with integrated latch lock/eject hooks for secure mating. The connector is designed for board-to-cable/wire applications and is mounted via right-angle through-hole soldering.
The contacts are made of phosphor bronze with a tin plating of 30µin thickness, offering reliable conductivity and corrosion resistance. The insulation is gray thermoplastic, glass-filled, rated UL94 V-0 for flammability. The connector includes keying slots and mounting flanges for alignment and mechanical stability.
With a contact length of 5.80mm and insulation height of 8.61mm, this header is suitable for compact designs requiring a robust interconnection. All 10 positions are fully loaded. The row spacing is 2.54mm, consistent with standard 0.100-inch grid patterns.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.75 | $1.75 |
| 16+ | $1.44 | $1.44 |
| 112+ | $1.25 | $1.25 |
| 512+ | $1.12 | $1.12 |
| 1,008+ | $1.07 | $1.07 |
| 5,008+ | $0.96 | $0.96 |
| 10,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The connector is through-hole mounted with a right-angle orientation and solder termination.
Contacts are phosphor bronze with a tin finish of 30.0µin (0.76µm) thickness.
Yes, it has a shrouded 4-wall design with latch lock/eject hooks for fastening.
The insulation is gray thermoplastic, glass filled, with UL94 V-0 flammability rating.
It is listed as RoHS3 Compliant, but this is unverified and has low confidence.
