| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
696 pcs
|
696 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Positions Loaded | |
| Style | |
| Termination | |
| Termination Style |

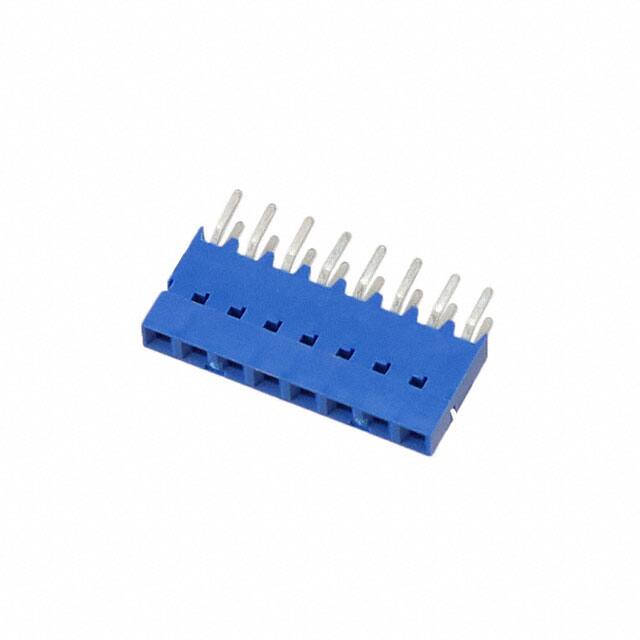

The Amphenol ICC 71920-308LF is an 8 position single row board to board receptacle connector designed for reliable board-to-board interconnections. It features a push-pull fastening type for secure mating and extraction. The connector has a through hole mounting style and terminates via solder. Contacts are female sockets with a tin finish and a thickness of 30.0µin (0.76µm). The insulation is blue, rated UL94 V-0 for flammability, and has a height of 8.51mm. The contact length is 3.10mm. This receptacle accommodates all 8 positions loaded and is suitable for bottom or top entry applications. The pitch of 2.54mm (0.100 inch) is standard for many PCB layouts, making this connector a compatible choice for many board-to-board designs. The connector is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.40 | $1.40 |
| 29+ | $1.10 | $1.10 |
| 116+ | $1.00 | $1.00 |
| 522+ | $0.90 | $0.90 |
| 1,015+ | $0.86 | $0.86 |
| 5,017+ | $0.77 | $0.77 |
| 10,005+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions, all loaded.
The pitch is 2.54mm (0.100 inch).
The mounting type is through hole.
It is a board to board receptacle.
The contacts have a tin finish with a thickness of 30.0µin (0.76µm).
Push-pull fastening.
