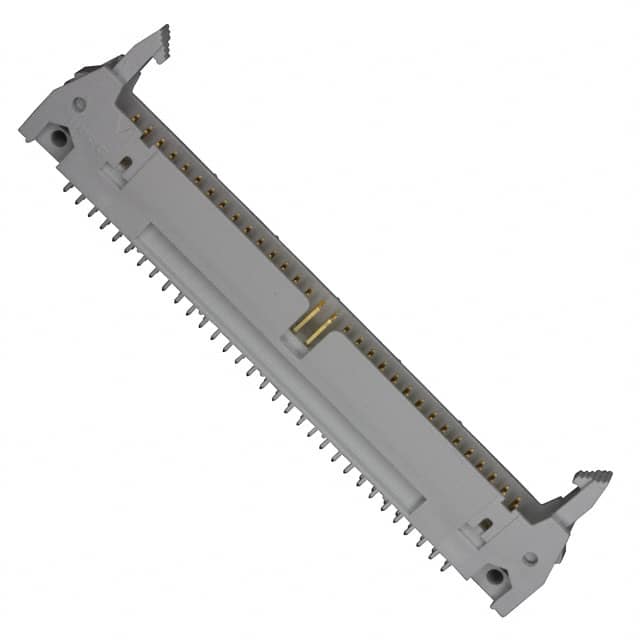

71918-164LF 64-position shrouded through-hole header with 2.54mm pitch and male pin contacts. Features latch lock/eject hooks and tin-plated phosphor bronze contacts.
Mfr Part #:

71918-164LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
64-position shrouded through-hole header with 2.54mm pitch and male pin contacts. Features latch lock/eject hooks and tin-plated phosphor bronze contacts.
✓ Total Stock: 300 pcs
$ Price Range: $2.84 - $4.69

71918-164LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

71918-164LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

71918-164LF Description

Short technical summary and product information.

The 71918-164LF is a 64-position, dual-row, shrouded header connector from Amphenol ICC designed for board-to-wire applications. It features a 2.54mm (0.100") pitch and row spacing with through-hole mounting and solder termination. The 4-wall shrouding provides robust protection, and the latch lock/eject hooks ensure secure mating. Contacts are made of phosphor bronze with a 30µin tin finish, offering reliable electrical performance. The insulator is molded from UL94 V-0 rated gray thermoplastic with glass filling for strength and flammability resistance. Additional features include a keying slot and mounting flange for correct orientation and secure attachment. With an insulation height of 17.40mm and contact length of 5.80mm, this header is suitable for dense PCB layouts requiring a reliable interconnection.

71918-164LF Quick Information

Product Type: Header Connector
Canonical Name: 64 Position 2.54mm Pitch Through Hole Header, Male Pins, Shrouded
Subcategory: Headers, Male Pins

71918-164LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

71918-164LF Estimated Pricing

Qty Low High
1+ $4.69 $4.69
10+ $3.98 $3.98
300+ $3.13 $3.13
600+ $2.98 $2.98
1,200+ $2.84 $2.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

71918-164LF Features

  • 64 positions in dual-row configuration.
  • 2.54mm pitch for standard spacing.
  • Shrouded 4-wall design with latch lock.
  • Phosphor bronze contacts with tin finish.
  • UL94 V-0 rated thermoplastic insulator.

71918-164LF Applications

  • Ideal for board-to-wire cable assemblies.
  • Suitable for industrial control systems.
  • Used in data communication equipment.
  • Common in test and measurement devices.

71918-164LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 71918-164LF have?

64 positions.

What is the pitch of this header?

2.54mm (0.100")

What is the mounting type?

Through Hole.

What is the contact material and finish?

Phosphor bronze with 30µin tin finish.

What is the insulation material and flammability rating?

Thermoplastic, glass filled, rated UL94 V-0.

Does this connector have a locking mechanism?

Yes, it features latch lock/eject hooks.

Is this part RoHS compliant?

Yes, it is listed as RoHS3 Compliant but this data is unverified.
