| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

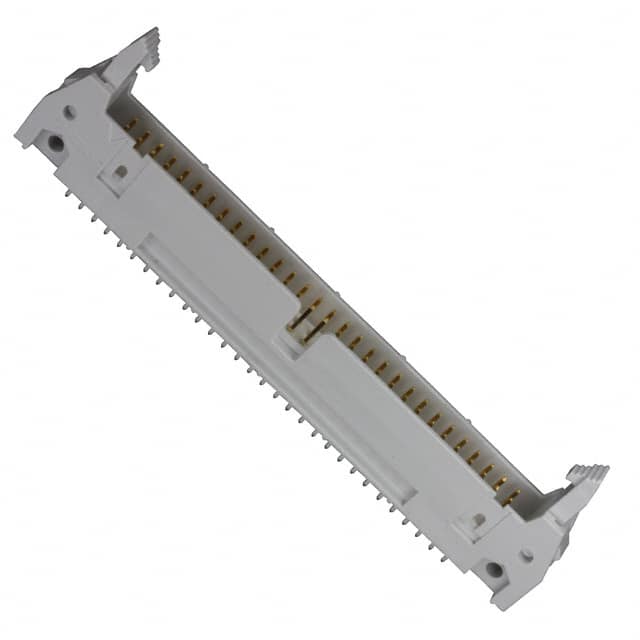

The Amphenol ICC 71918-160LF is a 60 position, 2 row shrouded header designed for board to cable/wire applications. It features a 2.54mm pitch and row spacing, with all positions loaded. The header uses square male pin contacts made of phosphor bronze with a tin finish (30.0µin thickness).
The connector is through hole mounted with solder termination. The housing is made of glass filled thermoplastic with a UL94 V-0 flammability rating and is gray in color. It includes a keying slot and mounting flange for secure alignment and attachment. The fastening type is latch lock/eject hooks, providing reliable mating retention.
This header is suitable for applications requiring a robust, high pin count connection in a compact 2.54mm pitch format. The shrouded 4-wall design protects the contacts and provides polarization.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.57 | $4.57 |
| 10+ | $3.89 | $3.89 |
| 30+ | $2.61 | $2.61 |
| 100+ | $3.30 | $3.30 |
| 150+ | $2.56 | $2.56 |
| 300+ | $2.52 | $2.52 |
| 500+ | $2.95 | $2.95 |
| 1,000+ | $2.81 | $2.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 60 positions arranged in 2 rows.
Through hole with solder termination.
Phosphor bronze contacts with a tin finish (30.0µin / 0.76µm).
Yes, it is a shrouded 4-wall header.
Glass filled thermoplastic with UL94 V-0 rating.
