| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,016 pcs
|
2016 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

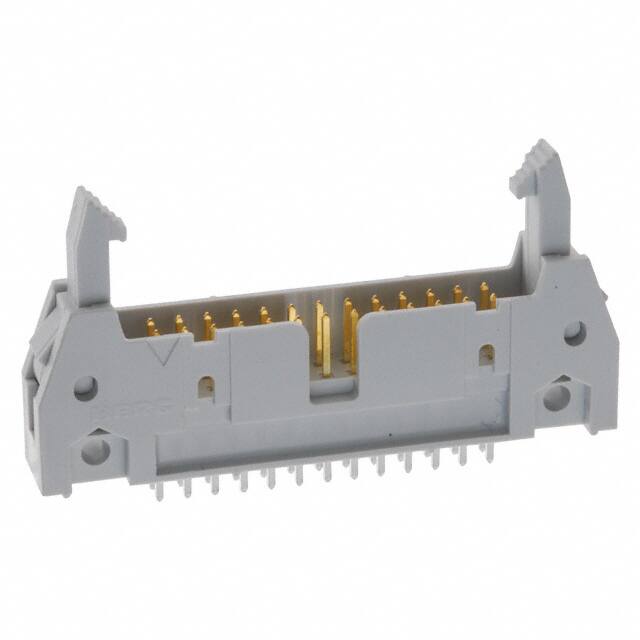

The Amphenol ICC 71918-126LF is a 26-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable and IDC socket connectors.
The header uses square male pin contacts made of phosphor bronze with a tin finish (30.0µin / 0.76µm). The housing is constructed from glass-filled thermoplastic with a gray color and a UL94 V-0 flammability rating. The 4-wall shrouding provides pin protection and polarization, while the integrated latch lock/eject hooks ensure secure mating and easy unmating.
This connector is through-hole mounted and terminated via solder. It includes a keying slot and mounting flange for alignment and mechanical retention. The insulation height is 17.40mm (0.685") and the contact length is 5.80mm (0.228").
| Qty | Low | High |
|---|---|---|
| 1+ | $1.95 | $1.95 |
| 10+ | $1.66 | $1.66 |
| 100+ | $1.41 | $1.41 |
| 540+ | $1.25 | $1.25 |
| 1,080+ | $1.19 | $1.19 |
| 5,400+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 26 positions in 2 rows, all positions loaded.
It is a through hole mount connector with solder termination.
Contacts are phosphor bronze with a tin finish of 30.0µin (0.76µm).
Yes, it features a 4-wall shrouded design.
The insulation is glass-filled thermoplastic with a UL94 V-0 rating.
