| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
676 pcs
|
676 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

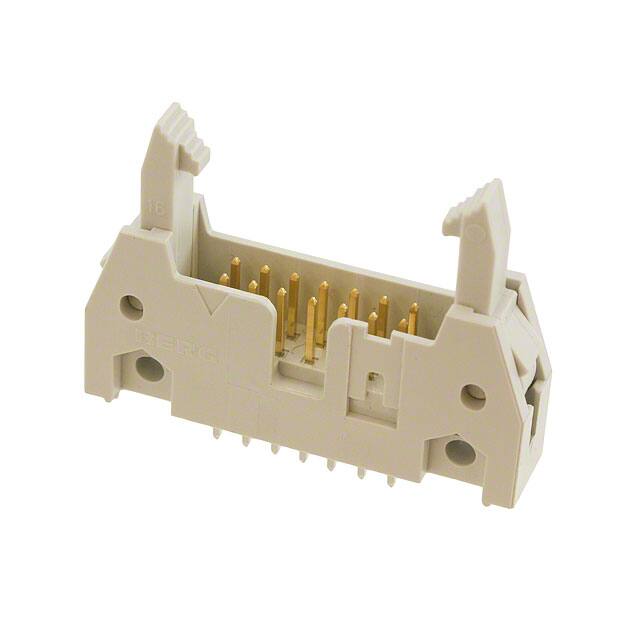

The Amphenol ICC 71918-114LF is a 14-position header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 0.100" row spacing with two rows of male square pins, making it suitable for standard prototyping and production interconnects. The contacts are made of phosphor bronze with a 30µin tin finish, offering reliable conductivity and corrosion resistance.
The connector is fully shrouded with a 4-wall design and includes a latch lock/eject hook fastening system for secure mating and easy disconnection. The housing is molded from glass-filled thermoplastic rated UL94 V-0 for flame retardancy, and the insulation is gray in color. Keying slots and mounting flanges are provided to ensure proper alignment and mechanical stability.
Termination is through-hole solder, and the header is designed for vertical mounting. The contact length is 5.80mm, and the insulation height is 17.40mm. This connector is commonly used in industrial control, computing, and consumer electronics where reliable board-to-wire connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 10+ | $1.85 | $1.85 |
| 100+ | $1.58 | $1.58 |
| 780+ | $1.36 | $1.36 |
| 1,560+ | $1.30 | $1.30 |
| 5,460+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
2.54mm (0.100") pitch and row spacing.
Through hole with solder termination.
Tin finish with 30µin thickness.
Glass-filled thermoplastic rated UL94 V-0.
Latch lock/eject hooks for secure mating.
Yes, fully shrouded with a 4-wall design.
