| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
864 pcs
|
864 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

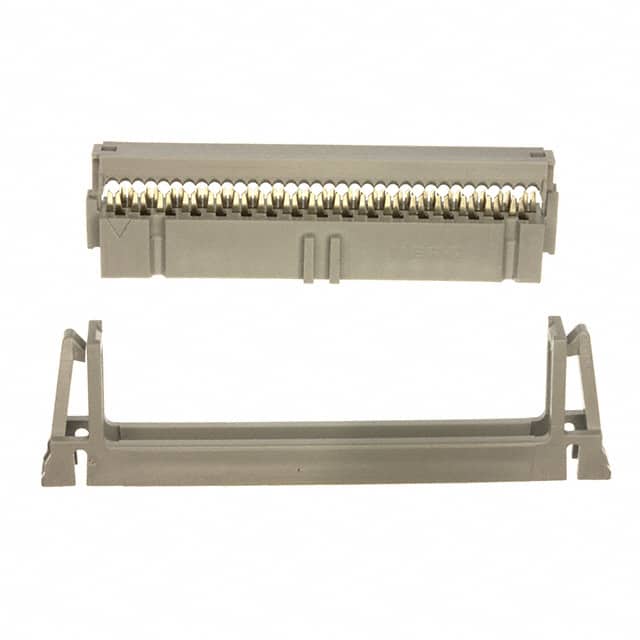

The 71600-634LF is a 34-position IDC receptacle from Amphenol ICC, designed for use with 28-30 AWG ribbon cable. It features a 2.54mm (0.100") pitch with two rows of female socket contacts, gold-plated to 30.0µin (0.76µm) for reliable signal integrity. The connector uses insulation displacement (IDC) termination for quick, solderless assembly.
Mounting is free hanging (in-line) with a latch lock fastening system that provides secure mating. The gray housing includes a polarizing key to prevent misalignment, a feed-through design for daisy-chaining, and an integrated strain relief to protect the cable termination. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
Typical applications include internal wiring in computers, peripherals, and industrial control equipment where ribbon cable interconnects are required. The 2.54mm pitch is industry-standard for many board-to-cable and cable-to-cable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 12+ | $2.04 | $2.04 |
| 36+ | $1.89 | $1.89 |
| 60+ | $1.82 | $1.82 |
| 108+ | $1.75 | $1.75 |
| 252+ | $1.65 | $1.65 |
| 504+ | $1.57 | $1.57 |
| 1,008+ | $1.49 | $1.49 |
| 2,508+ | $1.45 | $1.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54mm (0.100").
Free hanging (in-line) mounting.
Gold, 30.0µin (0.76µm).
28-30 AWG ribbon cable.
IDC (Insulation Displacement Connection).
Latch lock.
