| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,668 pcs
|
2668 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

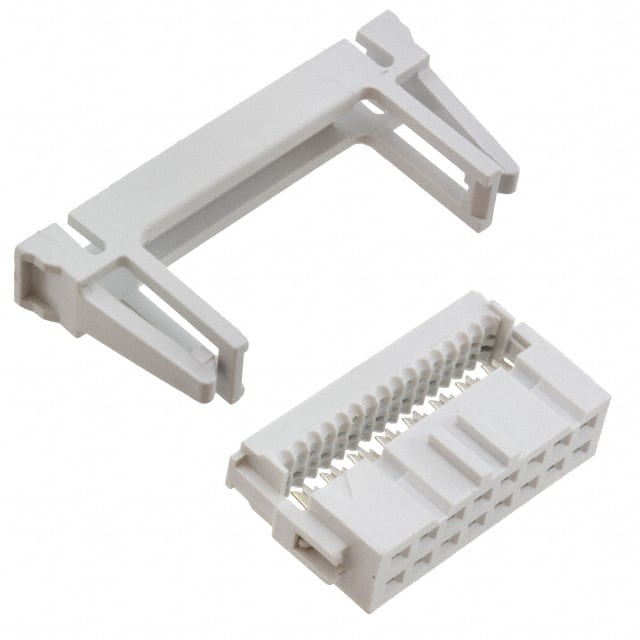

The 71600-616LF from Amphenol ICC is a 16-position IDC (Insulation Displacement Connector) receptacle designed for use with 28-30 AWG ribbon cable. It features a 2.54mm (0.100") pitch and row spacing with two rows of female socket contacts. The contacts are plated with 30.0µin (0.76µm) of gold for reliable conductivity and corrosion resistance.
Termination is via IDC, allowing quick connection without stripping insulation. The connector houses a free hanging (in-line) mounting type with a latch lock fastening mechanism to ensure secure mating. Additional features include feed through capability, a polarizing key for correct orientation, and an integrated strain relief to protect the cable from mechanical stress.
The housing is gray in color, and the connector is compliant with RoHS3 and REACH (unverified). It is suitable for internal wiring in electronic equipment where a compact, reliable ribbon cable interface is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 23+ | $1.19 | $1.19 |
| 46+ | $1.14 | $1.14 |
| 69+ | $1.11 | $1.11 |
| 115+ | $1.07 | $1.07 |
| 253+ | $1.01 | $1.01 |
| 506+ | $0.96 | $0.96 |
| 1,012+ | $0.92 | $0.92 |
| 2,507+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions in 2 rows.
2.54mm (0.100").
Free Hanging (In-Line).
28-30 AWG ribbon cable using IDC termination.
Gold, 30.0µin (0.76µm).
Feed through, polarizing key, strain relief.
Latch lock.
