| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
741 pcs
|
741 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

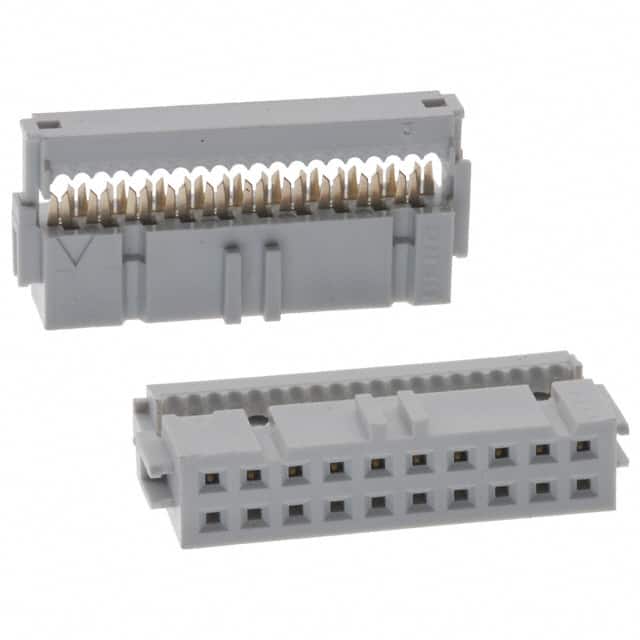

The Amphenol ICC 71600-120LF is a 20-position, 2-row rectangular IDC receptacle designed for mass termination of 28-30 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 0.100" row spacing, gold-plated female socket contacts with 30µin (0.76µm) thickness for reliable signal integrity. The connector is free hanging (in-line) mounted, making it suitable for cable-to-board or cable-to-cable connections where a secure, detachable interface is required. The feed through design allows daisy-chaining of multiple connectors along the same cable, while the integrated polarizing key ensures correct orientation during mating. The housing is gray, typical of IDC connectors. This part is commonly used in internal wiring harnesses, computer peripherals, and data communication equipment where ribbon cable harnesses are employed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.18 | $1.18 |
| 50+ | $1.13 | $1.13 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.00 | $1.00 |
| 684+ | $0.94 | $0.94 |
| 1,368+ | $0.89 | $0.89 |
| 2,736+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100").
Free hanging (in-line).
28-30 AWG ribbon cable.
Gold, 30µin (0.76µm).
Feed through and polarizing key.
IDC (Insulation Displacement Connector).
