| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,328 pcs
|
17328 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
590 pcs
|
590 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

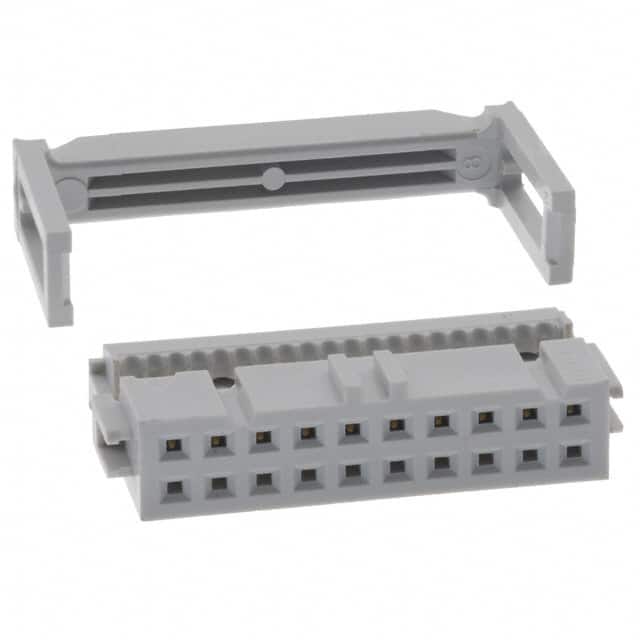

The 71600-020LF is a 20-position IDC receptacle from Amphenol ICC designed for ribbon cable termination. It features two rows with a 2.54mm pitch and 2.54mm row spacing, providing a compact and reliable connection for signal and low-power applications.
The contacts are female sockets with a gold finish of 0.76µm (30µin), offering excellent corrosion resistance and stable electrical performance over repeated mating cycles. The connector supports 28-30 AWG ribbon cable and uses insulation displacement contact (IDC) termination, enabling fast and consistent wire termination without stripping.
This free hanging (in-line) connector includes built-in features such as feed-through design, polarizing key for correct orientation, and integral strain relief to protect the cable termination point. The housing is gray, and the connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.60 | $1.60 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.27 | $1.27 |
| 50+ | $1.21 | $1.21 |
| 100+ | $1.15 | $1.15 |
| 250+ | $1.08 | $1.08 |
| 684+ | $1.01 | $1.01 |
| 1,368+ | $0.96 | $0.96 |
| 2,736+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100 inch).
Free hanging (in-line) mounting.
Gold with 0.76µm (30µin) thickness.
28-30 AWG ribbon cable.
2 rows.
Feed through, polarizing key, and strain relief.
