| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Pin Diameter | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Diameter | |
| Lead Style | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Socket Depth | |
| Tail Type | |
| Termination | |
| Termination Style |

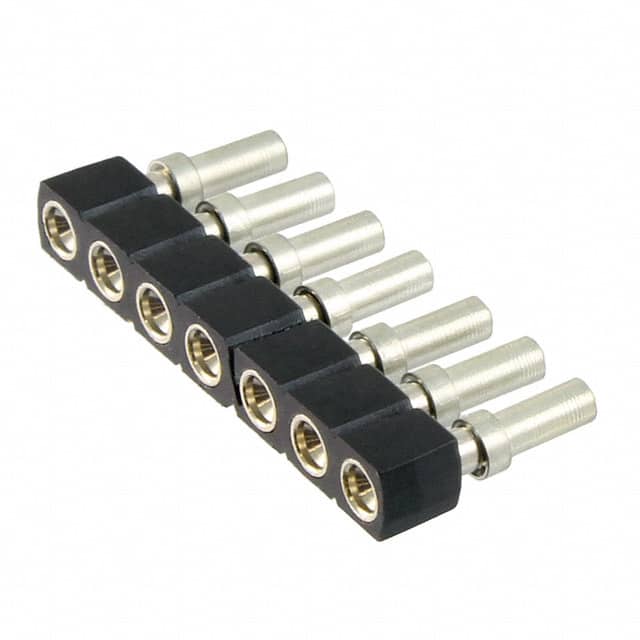

The 714-87-107-41-001101 is a PC pin receptacle from Preci-Dip designed to accept pin diameters from 0.016" to 0.022" (0.41mm to 0.56mm). It features a solder termination style with no tail, making it suitable for through-hole PCB mounting. The contact is made of beryllium copper with a gold flash finish, ensuring reliable conductivity and corrosion resistance.
The receptacle has an overall length of 4.19mm (0.165") and a flange diameter of 1.83mm (0.072"). The socket depth is 0.146" (3.71mm). The mounting hole diameter range is 0.055" to 0.071" (1.40mm to 1.80mm). This component is typically used in PCB interconnect applications where a low-profile, solderable pin socket is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $0.99 | $0.99 |
| 100+ | $0.84 | $0.84 |
| 500+ | $0.75 | $0.75 |
| 1,500+ | $0.69 | $0.69 |
| 6,000+ | $0.63 | $0.63 |
| 10,500+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts pin diameters from 0.016" to 0.022" (0.41mm to 0.56mm).
Solder termination.
Beryllium copper.
Gold flash (Gold contact finish with flash thickness).
4.19mm (0.165").
0.146" (3.71mm).
1.83mm (0.072").
