| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

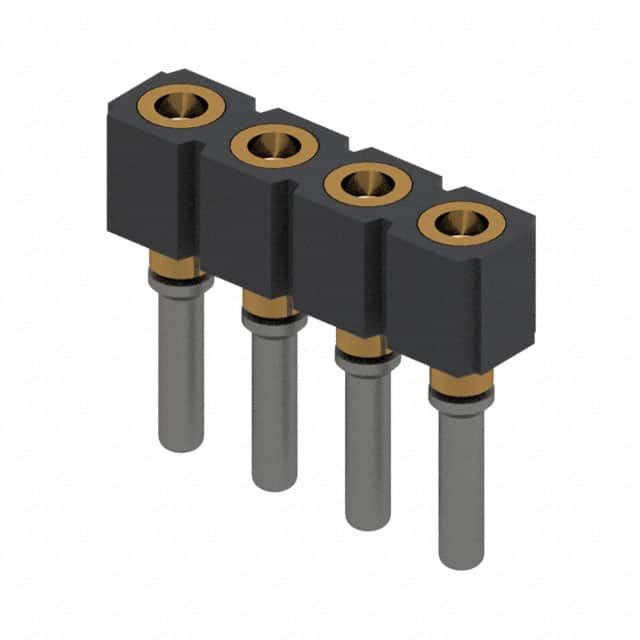

The 714-43-104-31-018000 is a 4-position SIP socket from Mill-Max Manufacturing. It has a 2.54mm (0.100") pitch and is designed for through-hole mounting with solder termination. The contacts are made of beryllium copper with a 30.0µin (0.76µm) gold finish for reliable electrical connections.
The housing is constructed from Polycyclohexylenedimethylene Terephthalate (PCT) and polyester, offering good mechanical and thermal properties. The operating temperature range is -55°C to 125°C, suitable for a wide variety of environments. This socket includes a carrier feature for ease of handling during assembly.
Part of the IC sockets category, this SIP socket is commonly used for interconnecting modules, programming headers, and prototyping applications. Its compact 1x4 arrangement saves board space while providing secure connections.
4 positions in a 1x4 grid.
2.54mm (0.100 inches).
Through hole with solder termination.
Gold, 30.0µin (0.76µm) thick.
-55°C to 125°C.
Beryllium copper.
Yes, listed as RoHS3 compliant (unverified).
