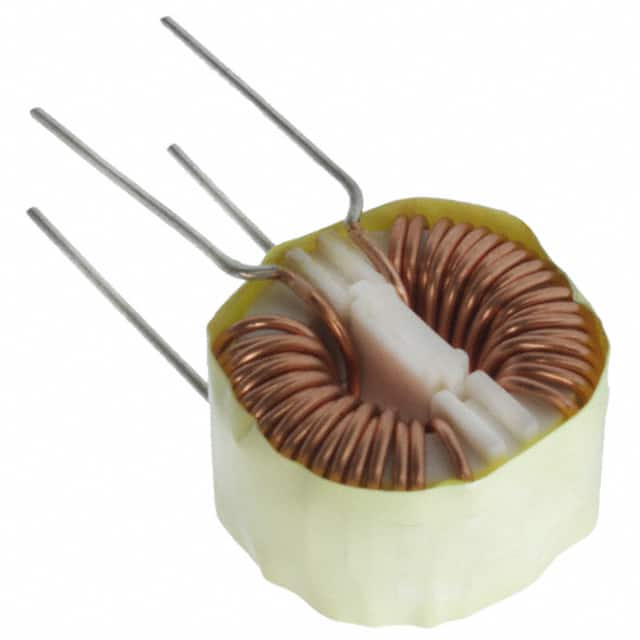

7117-RC The Bourns 7117-RC is a 2-line common mode choke with 850 µH inductance, 5A current rating, and 35 mOhm DCR in a through-hole package.
Mfr Part #:

7117-RC

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 7117-RC is a 2-line common mode choke with 850 µH inductance, 5A current rating, and 35 mOhm DCR in a through-hole package.
✓ Total Stock: 8 pcs
$ Price Range: $2.95 - $4.64

7117-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7117-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

7117-RC Description

Short technical summary and product information.

The Bourns 7117-RC is a common mode choke from the 7100 Series, designed to reduce conductive EMI emissions in power and signal lines. It features a minimum inductance of 850 µH at 1 kHz, a maximum DC current rating of 5A, and a maximum DC resistance of 35 mOhm. The component is wound on a ferrite core housed in a UL 94V-0 rated plastic case, providing robust insulation with a dielectric strength of 3750 Vrms.



This through-hole device has a vertical, no-base package with 4 PC pin leads. Its dimensions are 0.900" diameter by 0.650" width (22.86mm x 16.51mm) with a maximum height of 0.900" (22.86mm). The lead spacing is 0.300" (7.62mm) and lead diameter is 0.030" (0.76mm). The operating temperature range is -55°C to 105°C.



The 7117-RC is suitable for applications requiring high current capacity and high impedance at low frequencies. The -RC suffix indicates RoHS compliance, and the datasheet includes a California Prop 65 warning.

7117-RC Quick Information

Product Type: Common Mode Choke
Series: 7100 Series
Canonical Name: Bourns 7117-RC Common Mode Choke
Subcategory: Through Hole Common Mode Choke

7117-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

7117-RC Estimated Pricing

Qty Low High
1+ $4.64 $4.64
25+ $4.47 $4.47
50+ $3.44 $3.44
108+ $3.19 $3.19
216+ $3.03 $3.03
540+ $2.95 $2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

7117-RC Features

  • Minimum inductance of 850 µH at 1 kHz.
  • Rated for 5A maximum DC current.
  • Maximum DC resistance of 35 mOhm.
  • Dielectric strength of 3750 Vrms.
  • Ferrite core with UL 94V-0 rated case.

7117-RC Applications

  • Reduces conductive EMI in power lines.
  • Suitable for high current filtering circuits.
  • Used in switch-mode power supply inputs.
  • Ideal for signal line common mode noise suppression.

7117-RC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the Bourns 7117-RC?

The minimum inductance is 850 µH at 1 kHz.

What is the current rating of the 7117-RC?

The maximum DC current rating is 5A.

What is the DC resistance of the 7117-RC?

The maximum DC resistance is 35 mOhm.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

Is the Bourns 7117-RC RoHS compliant?

Yes, the -RC suffix indicates RoHS compliance, and the datasheet confirms RoHS3 compliance.

What is the package type for the 7117-RC?

The package is Vertical, No Base, 4 PC Pin (through hole).

What is the dielectric strength of this choke?

The dielectric strength is 3750 Vrms.
