| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| California Proposition 65 | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Current Rating | |
| Current Rating (Nominal @ TUV, CCC) | |
| Filter Type | |
| Fuse Accommodated | |
| Housing Material | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| PFAS | |
| Panel Cutout Dimensions | |
| Termination | |
| Voltage Rating | |
| Voltage Rating (Nominal @ UL, CSA) | |
| Voltage Rating (Nominal) | |
| current_rating (Nominal @ UL/CSA) |

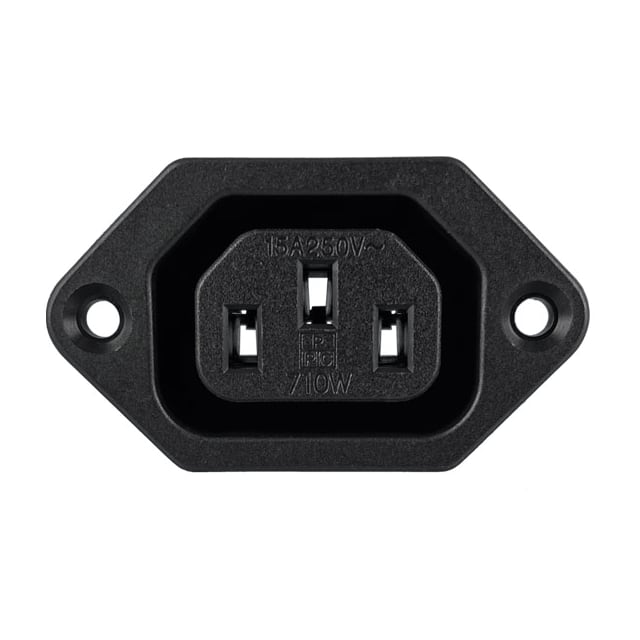

The Qualtek 710W-00/01 is an IEC 60320 C13 (IEC 320-2-2/F) AC power outlet designed for panel mount applications with a flange screw mount. It features a black PBT housing and brass, tin-plated solder eyelet terminals.
This unfiltered commercial-grade receptacle is rated 15A at 250VAC under UL and CSA approvals, and 10A at 250VAC under TUV and CCC approvals. It accepts a rectangular panel cutout of 32.50mm x 25.00mm and is suitable for use in power entry systems requiring a reliable screw-mount connection.
The part is RoHS3 compliant, REACH unaffected, and contains PFAS (CAS# 24920-49-3, 0.1% to 1%). It does not accommodate a fuse.
The current rating is 15A under UL/CSA approvals and 10A under TUV/CCC approvals, both at 250VAC.
The voltage rating is 250VAC. An alternate rating of 125VAC is also listed for UL/CSA.
It uses panel mount with a flange (screw mount).
It is an IEC 320-2-2/F (IEC 60320 C13) receptacle with female sockets.
No, the 710W-00/01 does not accommodate a fuse.
The panel cutout is rectangular, 32.50mm x 25.00mm.
It has UL, CSA, TUV, and CCC approvals.
