Mfr Part #:

7109D/TRG

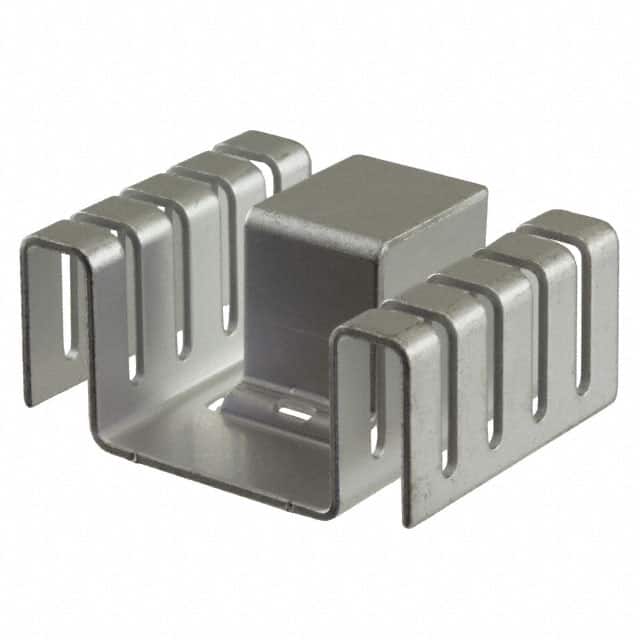

Name: 7109D/TRG
Brand: Aavid, Thermal Division of Boyd Corporation
SKU: 7109D/TRG

Description:

HEATSINK TO-263 (D2PK)

Stock on Request

7109D/TRG Description

Short technical summary and product information.

HEATSINK TO-263 (D2PK)

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

7109DG

Aavid, Thermal Division of Boyd Corporation

TOP MOUNT HEATSINK .45" D2PAK

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	SMD Pad
Fin Height	0.450" (11.43mm)
Length	0.763" (19.38mm)
Material	Copper
Material Finish	Tin
Package Cooled	TO-263 (D²Pak)
Power Dissipation @ Temperature Rise	2.0W @ 30°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	3.00°C/W @ 300 LFM
Thermal Resistance @ Natural	11.00°C/W
Type	Top Mount
Width	1.000" (25.40mm)
