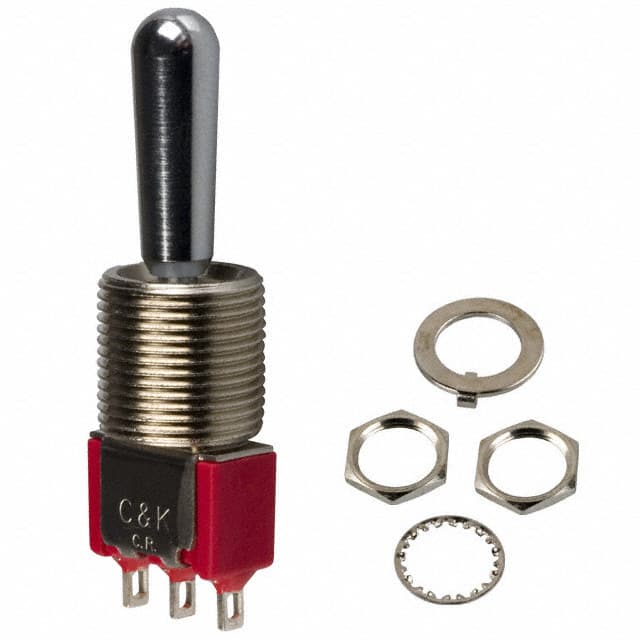

7105TCWZQE The C&K Components 7105TCWZQE is an SPDT toggle switch with a 5A/120V rating and IP67 sealing. It features a Mom-Off-Mom function and panel mount termination.
Mfr Part #:

7105TCWZQE

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components 7105TCWZQE is an SPDT toggle switch with a 5A/120V rating and IP67 sealing. It features a Mom-Off-Mom function and panel mount termination.
✓ Total Stock: 94 pcs
$ Price Range: $0.75

7105TCWZQE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7105TCWZQE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Length
Actuator Type
Automotive Grade
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Industrial Grade
Ingress Protection
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

7105TCWZQE Description

Short technical summary and product information.

This C&K Components 7105TCWZQE is a Single Pole Double Throw (SPDT) toggle switch designed for robust applications. It offers a current rating of 5A and a voltage rating of 120V, making it suitable for various electrical switching needs.



The switch features a Mom-Off-Mom function, providing specific operational states. Its ingress protection rating of IP67 ensures it is dust-tight and waterproof, suitable for harsh environments. The operating temperature range is from -30°C to 85°C.



Designed for panel mounting, this toggle switch utilizes solder lug termination for secure connections. It has a bushing thread of 15/32-32 and a panel cutout diameter of 11.91mm. The actuator is a standard round type with a length of 17.45mm and is non-illuminated. Additional features include epoxy sealed terminals for enhanced durability.

7105TCWZQE Quick Information

Product Type: Toggle Switch
Canonical Name: C&K Components 7105TCWZQE SPDT Toggle Switch

7105TCWZQE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7105TCWZQE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

7105TCWZQE Features

  • SPDT toggle switch with 5A/120V rating.
  • IP67 dust-tight and waterproof sealing.
  • Mom-Off-Mom switching function.
  • Panel mount with solder lug termination.
  • Operates from -30°C to 85°C.

7105TCWZQE Applications

  • Suitable for general purpose switching.
  • Used in environments requiring sealing.
  • Ideal for control panel applications.
  • Reliable for industrial equipment.

7105TCWZQE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the switch?

The switch has an SPDT (Single Pole Double Throw) circuit configuration.

What is the current rating of the switch?

The switch is rated for 5A current.

What is the voltage rating of the switch?

The switch has a voltage rating of 120V.

What is the ingress protection rating?

The switch has an ingress protection rating of IP67, dust tight and waterproof.

What are the operating temperature limits?

The switch operates within a temperature range of -30°C to 85°C.

What mounting style does the switch use?

The switch is designed for panel mounting with a panel cutout diameter of 11.91mm.

Is the switch illuminated?

The switch is non-illuminated.
