| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Contact Plating | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

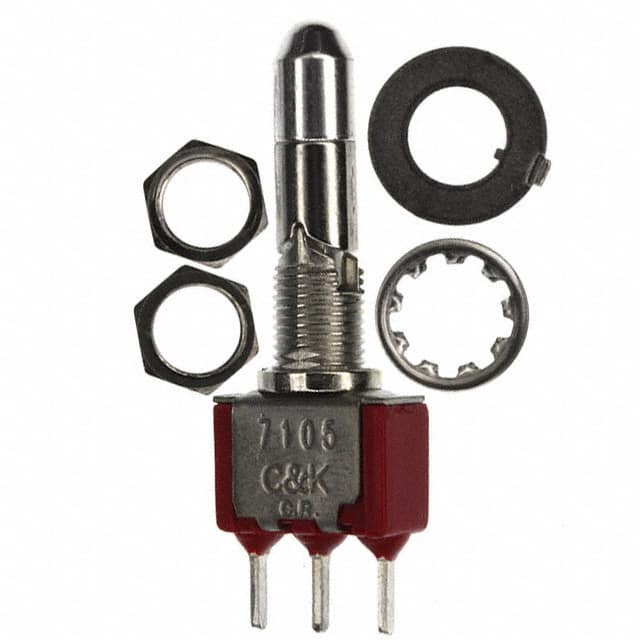

This C&K Components 7105K2CQE is a single-pole, double-throw (SPDT) toggle switch. It is designed for panel mounting and features PC pin termination for secure connections. The switch is rated for a current of 5A (AC/DC) and a voltage of 125 VAC or 28 VDC.
With an operating temperature range of -30°C to 85°C, this non-illuminated toggle switch is suitable for various applications. It features a locking lever actuator and epoxy-sealed terminals for added durability and protection. The panel cutout required is circular with a 6.35mm diameter, and it has a 1/4-40 bushing thread.
The 7105K2CQE series switch has a mechanical life of 40,000 cycles and features silver contact plating. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 7105K2CQE toggle switch has a current rating of 5A.
The voltage ratings for the 7105K2CQE toggle switch are 125 VAC and 28 VDC.
The operating temperature range for the 7105K2CQE toggle switch is -30°C to 85°C.
The 7105K2CQE toggle switch is designed for panel mounting.
The contact form of the 7105K2CQE toggle switch is SPDT.
