| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Failure Rate | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

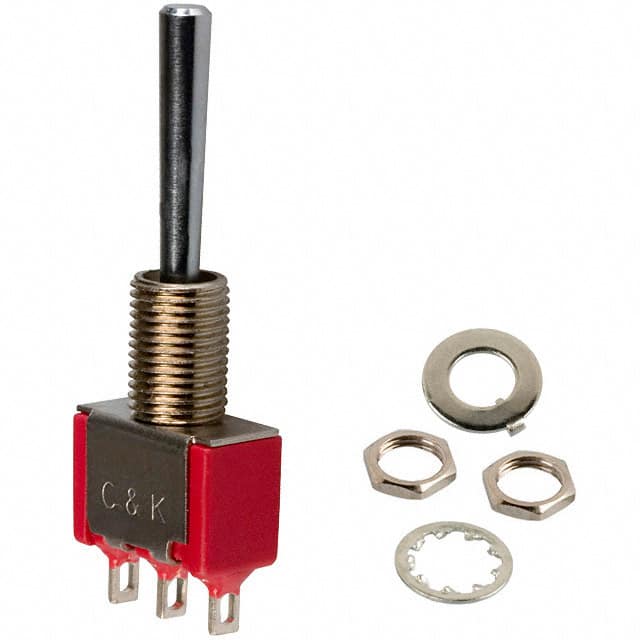

The C&K 7103L1YZQE is a single-pole, double-throw (SPDT) toggle switch from the 7000 series. It is designed for panel mounting and features a standard round actuator with a length of 16.26mm. The switch has a current rating of 5A at 120V AC and 28V DC, with solder lug termination for secure connections.
This non-illuminated toggle switch operates within a temperature range of -30°C to 85°C and includes epoxy sealed terminals for enhanced durability and protection. The panel cutout dimensions are circular with a 6.35mm diameter, and it features a 1/4-40 bushing thread.
With an electrical life of 40,000 cycles, the 7103L1YZQE is suitable for various applications requiring reliable switching. Its robust construction and specified operating conditions make it a dependable component for industrial and commercial use.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 5A (AC/DC).
It is rated for 120V AC and 28V DC.
It is designed for panel mounting.
The operating temperature range is -30°C to 85°C.
It uses solder lug termination.
The circuit configuration is SPDT (Single Pole Double Throw).
No, it is non-illuminated.
