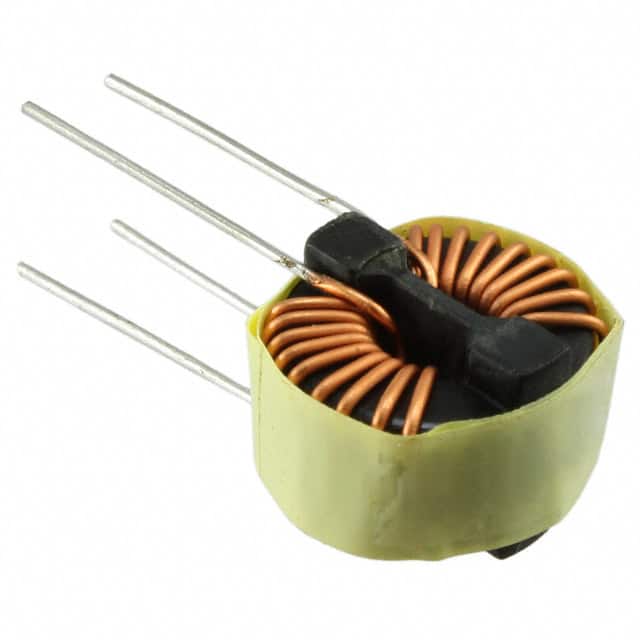

7102-RC Bourns 7102-RC is a common mode choke with 850µH inductance, 1A current rating, and 2-line configuration. It features a through hole package with 3750Vrms dielectric strength.
Mfr Part #:

7102-RC

Available from 1 distributors
Mfr Name: Bourns
Bourns
Bourns 7102-RC is a common mode choke with 850µH inductance, 1A current rating, and 2-line configuration. It features a through hole package with 3750Vrms dielectric strength.
✓ Total Stock: 24 pcs
$ Price Range: $2.36

7102-RC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7102-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

7102-RC Description

Short technical summary and product information.

The Bourns 7102-RC is a common mode choke from the 7100 series, designed to reduce conductive EMI emissions. It offers an inductance of 850µH at 1 kHz and a maximum DC current rating of 1A.



The component features a maximum DC resistance of 60 mOhm and a dielectric strength of 3750 Vrms. It operates over a temperature range of -55°C to 105°C and is rated UL94 V-0 for flammability.



The choke is housed in a vertical, no base, 4 PC pin package with through hole mounting. Dimensions are 0.700" diameter by 0.550" width, with a maximum height of 0.700". Lead pitch is 0.200" and lead diameter is 0.016".



This component is RoHS compliant (with -RC suffix) and suitable for power line filtering applications where high impedance at low frequency is required.

7102-RC Quick Information

Product Type: Common Mode Choke
Series: 7100 Series
Canonical Name: Bourns 7102-RC Common Mode Choke
Subcategory: Common Mode EMI Chokes

7102-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7102-RC Estimated Pricing

Qty Low High
286+ $2.36 $2.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

7102-RC Features

  • Inductance of 850µH at 1 kHz.
  • Maximum DC current rating of 1A.
  • Dielectric strength of 3750 Vrms.
  • Through hole vertical package.
  • RoHS compliant with -RC suffix.

7102-RC Applications

  • Reduces conductive EMI emissions in power lines.
  • Suitable for high current filtering applications.
  • Used in power supply input/output filtering.
  • Ideal for low frequency noise suppression.

7102-RC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 7102-RC?

-55°C to 105°C.

Is the 7102-RC RoHS compliant?

Yes, the -RC suffix indicates RoHS compliance.

What is the package type of the 7102-RC?

Vertical, No Base, 4 PC Pin through hole package.

What is the inductance value of the 7102-RC?

850 µH at 1 kHz.

What is the maximum current rating of the 7102-RC?

1 A.

What is the dielectric strength of the 7102-RC?

3750 Vrms.

What is the DC resistance of the 7102-RC?

60 mOhm maximum.
