| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

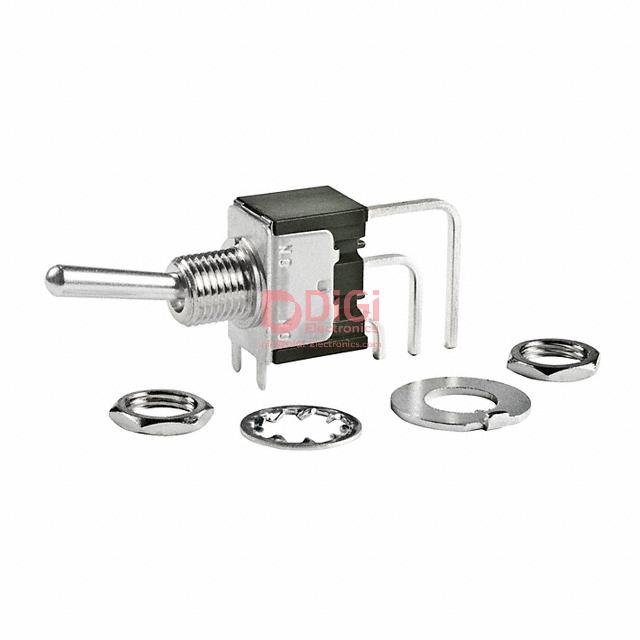

This C&K Components 7101SDAV2QE is a Single Pole Double Throw (SPDT) toggle switch. It is rated for 5A AC/DC current and 28V voltage. The switch features a standard round actuator with a length of 12.45mm and is designed for panel mounting in a right-angle, vertical orientation.
The termination style is PC Pin, and it has a bushing thread of 1/4-40. The panel cutout dimensions are circular with a 6.35mm diameter. This non-illuminated switch operates within a temperature range of -30°C to 85°C and includes epoxy sealed terminals for added durability.
It is suitable for applications requiring a reliable SPDT switching function. The right-angle, vertical mounting makes it ideal for specific PCB layouts and front panel configurations where space or orientation is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 7101SDAV2QE toggle switch features an SPDT circuit.
This toggle switch is rated for 5A (AC/DC) and 28V.
The 7101SDAV2QE is designed for panel mounting in a right-angle, vertical orientation.
The operating temperature range for the 7101SDAV2QE is -30°C to 85°C.
The 7101SDAV2QE utilizes PC Pin termination style.
No, the 7101SDAV2QE is a non-illuminated toggle switch.
