| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

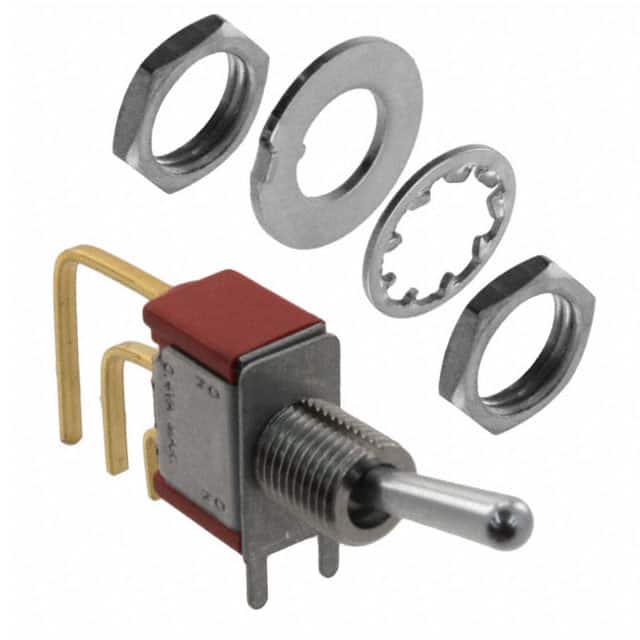

This C&K Components 7101SDAV2BE is a Single Pole Double Throw (SPDT) toggle switch designed for panel mounting with a right angle, vertical orientation. It operates with a voltage rating of 20V and a current rating of 0.4VA (AC/DC).
The switch features a standard round actuator and a PC pin termination style, with a bushing thread of 1/4-40. The panel cutout diameter is circular at 6.35mm. It operates within a temperature range of -30°C to 85°C and includes epoxy sealed terminals for enhanced durability.
This non-illuminated toggle switch is suitable for applications requiring a reliable on-on switching function. Its robust construction and specific mounting type make it a versatile component for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 7101SDAV2BE is 20V.
The current rating is 0.4VA (AC/DC).
The operating temperature range is -30°C to 85°C.
It is a panel mount switch with a right angle, vertical orientation.
The termination style is PC Pin.
