| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Maximum @ after 50,000 cycles) | |
| Contact Resistance (Maximum) | |
| Current Rating | |
| Dielectric Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Insulating Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shock | |
| Storage Condition | |
| Storage Temperature | |
| Termination Finish | |
| Termination Style | |
| Underplating | |
| Vibration | |
| Voltage Rating |

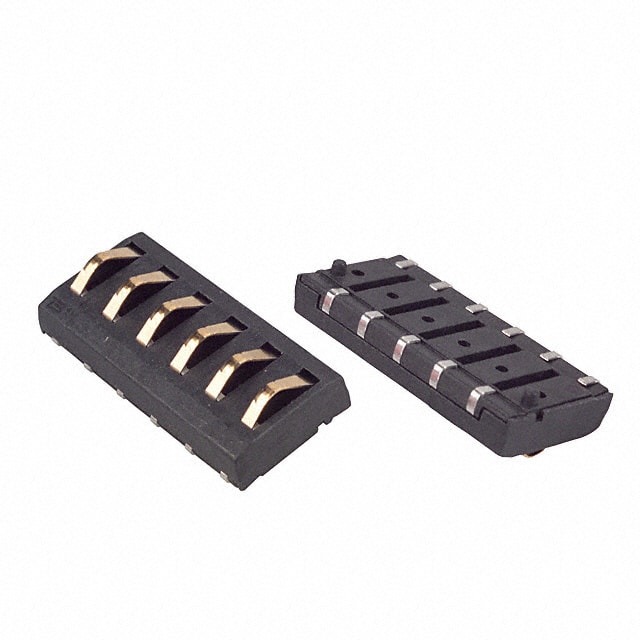

The Bourns 70ADJ-6-ML1 is a 6-position compression contact male connector from the 70AD series, featuring a single row with 4.00mm pitch. Designed for surface mount (SMD) assembly, this connector utilizes a glass reinforced thermoplastic insulator rated UL 94V-0 and copper alloy contacts with gold over nickel plating. The contact area has 30 µin minimum gold over 30 µin minimum nickel underplating, and the termination finish is tin alloy.
Electrical specifications include a current rating of 3 A per contact (DC), voltage rating of 30 VDC, maximum contact resistance of 25 mΩ (50 mΩ after 50,000 cycles), insulation resistance of 500 MΩ minimum, and dielectric withstanding voltage of 500 VAC. The connector is rated for 50,000 cycles minimum durability with a normal force of 100 grams minimum at 0.51 mm working height. It meets vibration (10-55 Hz, 0.06 inches D.A.) and shock (50 G, 11 ms) requirements.
Operating temperature range is -55°C to 125°C. The part is RoHS compliant, lead free, and halogen free, with MSL 1 (unlimited). ESD rating (HBM) is 3B. The 6-position version has dimensions A = 23.83 mm and B = 21.11 mm. This connector is suitable for applications requiring reliable, high-cycle spring-loaded interconnections in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.80 | $2.80 |
| 20+ | $2.26 | $2.26 |
| 40+ | $2.16 | $2.16 |
| 60+ | $2.10 | $2.10 |
| 100+ | $2.02 | $2.02 |
| 260+ | $1.89 | $1.89 |
| 500+ | $1.80 | $1.80 |
| 1,000+ | $1.72 | $1.72 |
| 2,500+ | $1.61 | $1.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
4.00mm (0.157 inches).
3 A per contact (DC).
30 VDC.
Surface Mount.
Gold with nickel underplating (30 µin Au over 30 µin Ni).
50,000 cycles minimum.
