| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Resistance (Maximum @ after 50,000 cycles) | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Shock | |
| Storage Condition | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Finish | |
| Termination Style | |
| Vibration | |
| Voltage Rating |

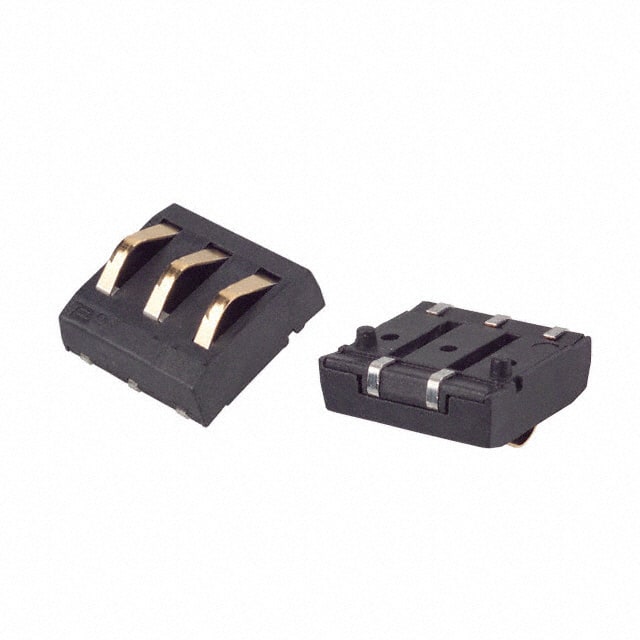

The Bourns 70ADJ-3-ML1G is a 3-position spring loaded male connector from the 70AD series, designed for rugged and reliable board-to-board connections. It features a 4mm pitch and a low profile, making it suitable for space-constrained applications.
Electrical specifications include a current rating of 3A per contact at 30VDC, with a maximum initial contact resistance of 25mΩ. The connector is rated for 50,000 cycles minimum, with contact resistance after 50,000 cycles not exceeding 50mΩ. It operates over a temperature range of -55°C to 125°C.
The connector is surface mount (SMD) with tin alloy terminations. The insulator is glass reinforced thermoplastic with a UL94V-0 rating. Contacts are copper alloy with gold plating in the contact area (30µin minimum) over nickel underplating. The part is RoHS compliant and halogen free per Bourns definition.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.75 | $1.75 |
| 10+ | $1.48 | $1.48 |
| 25+ | $1.39 | $1.39 |
| 50+ | $1.32 | $1.32 |
| 100+ | $1.26 | $1.26 |
| 250+ | $1.18 | $1.18 |
| 500+ | $1.12 | $1.12 |
| 1,000+ | $1.07 | $1.07 |
| 1,500+ | $1.04 | $1.04 |
| 2,500+ | $1.00 | $1.00 |
| 3,500+ | $0.98 | $0.98 |
| 5,000+ | $0.96 | $0.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A per contact (DC).
The voltage rating is 30VDC.
The pitch is 4.00 mm (0.157 inches).
It has 3 contacts in a single row.
The operating temperature range is -55°C to 125°C.
The mounting type is Surface Mount (SMD).
Yes, it is RoHS compliant and also halogen free per Bourns definition.
