| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact_Resistance_After_Durability | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Flammability Rating | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Shock | |
| Storage Condition | |
| Vibration | |
| Voltage Rating | |
| Width |

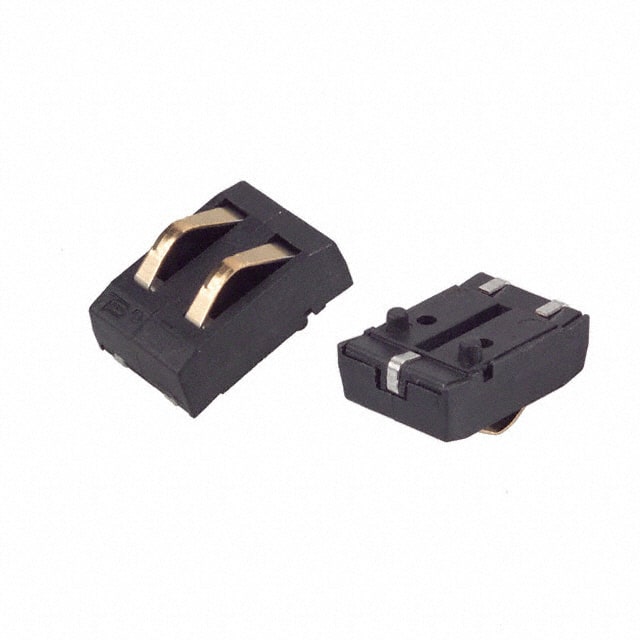

The Bourns 70ADJ-2-ML1 is a compression contact male connector from the 70AD series, designed for modular interconnect applications. It features 2 contacts in a single row with a 4mm pitch, making it suitable for compact designs. The connector is surface mountable, enabling automated assembly processes.
Electrical ratings include 3A per contact at 30VDC, with a maximum contact resistance of 25mΩ. Dielectric withstanding voltage is 500VAC, and insulation resistance is 500MΩ minimum. The operating temperature range spans -55°C to 125°C, ensuring reliability in harsh environments.
Mechanically, the connector uses copper alloy contacts with a gold finish (30µin over nickel) and a glass reinforced thermoplastic insulator rated UL 94V-0. It offers a minimum normal force of 100 grams at 0.51mm working height, and a durability of 50,000 cycles. Vibration resistance is 10-55Hz at 0.06 inches displacement amplitude, and shock resistance is 50G for 11ms.
The part is RoHS compliant, lead free, halogen free, and has an MSL rating of 1 (unlimited floor life). ESD rating is HBM class 3B. Storage conditions should not exceed 40°C and 70% relative humidity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.18 | $1.18 |
| 60+ | $1.11 | $1.11 |
| 120+ | $1.06 | $1.06 |
| 300+ | $0.99 | $0.99 |
| 540+ | $0.95 | $0.95 |
| 1,020+ | $0.91 | $0.91 |
| 2,520+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 positions.
The pitch is 4.00mm.
The current rating is 3A per contact.
The voltage rating is 30VDC.
The mounting type is surface mount.
The operating temperature range is -55°C to 125°C.
The durability is a minimum of 50,000 cycles.
