| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Resistance (Maximum @ after 50,000 cycles) | |
| Current Rating | |
| Dielectric Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shock | |
| Storage Condition | |
| Storage Temperature | |
| Termination Finish | |
| Vibration | |
| Voltage Rating |

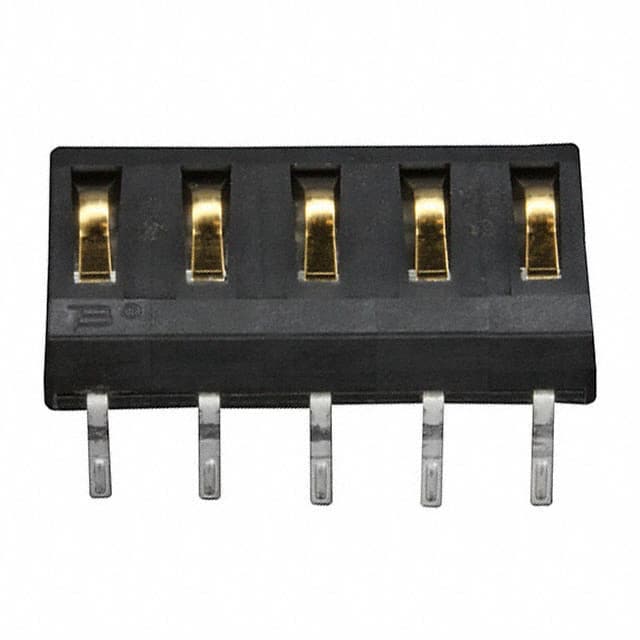

The 70ADH-5-ML0 is a 5-position male compression contact connector from Bourns. It features a single row of contacts with a 4mm pitch and gold-plated copper alloy contacts with 30µin gold over nickel. The insulator is made of glass-reinforced thermoplastic rated UL 94V-0. Termination finish is tin alloy.
Electrical ratings include a current rating of 3A per contact and a voltage rating of 30VDC. Maximum initial contact resistance is 25mΩ and minimum insulation resistance is 500MΩ. The connector can withstand a dielectric voltage of 500VAC. Operating temperature range is -55°C to 125°C.
Mechanically this connector is designed for through hole mounting and offers high durability with a minimum of 50,000 mating cycles. It has a vibration resistance of 10-55 Hz and shock resistance of 50 G. Minimum normal force is 100 grams at 0.51mm working height.
The product is RoHS compliant, lead free, and halogen free as verified in the datasheet. Moisture sensitivity level is 1 and ESD rating (HBM) is 3B.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.60 | $2.60 |
| 24+ | $2.07 | $2.07 |
| 48+ | $1.97 | $1.97 |
| 72+ | $1.92 | $1.92 |
| 120+ | $1.85 | $1.85 |
| 264+ | $1.75 | $1.75 |
| 504+ | $1.67 | $1.67 |
| 1,008+ | $1.59 | $1.59 |
| 2,520+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm (0.157 inches).
It has 5 contacts arranged in a single row.
The current rating is 3A per contact.
The voltage rating is 30VDC.
Through hole mounting.
-55°C to 125°C.
Gold with 30.0µin thickness over nickel underplating.
