| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
546 pcs
|
546 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Prop 65 | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Underplating | |
| Contact Material | |
| Contact Resistance (Initial) | |
| Contact Resistance After 50,000 Cycles | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Material | |
| Mechanical Durability | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

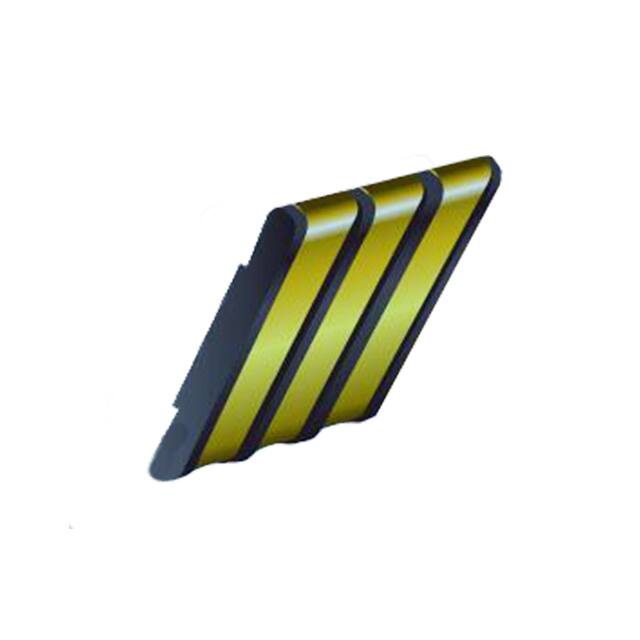

The Bourns 70ABJ-3-F0E is a 3-position female compression contact connector from the 70AB series. It features a 1.27mm (0.050 inch) pitch and is designed for surface mount applications. The connector uses a copper alloy contact with a 30 µinch minimum gold over nickel finish and a glass reinforced thermoplastic insulator rated UL 94V-0.
Electrical ratings include 3A per contact current capacity and 60V voltage rating. Contact resistance is 25 milliohms maximum initial and 50 milliohms maximum after 50,000 cycles. The insulation resistance is 1000 Mohms minimum, and the dielectric withstanding voltage is 500 VAC. The operating temperature range spans -55°C to +125°C.
The connector is supplied in embossed tape packaging with a standard quantity of 500 pieces per reel. It is RoHS compliant, lead free, and halogen free, with a moisture sensitivity level of 1 (unlimited floor life). The ESD rating is 3B (HBM). Storage conditions are 40°C maximum and 70% RH maximum.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $1.92 | $1.92 |
| 25+ | $1.80 | $1.80 |
| 50+ | $1.71 | $1.71 |
| 100+ | $1.63 | $1.63 |
| 250+ | $1.53 | $1.53 |
| 500+ | $1.45 | $1.45 |
| 1,000+ | $1.38 | $1.38 |
| 1,500+ | $1.34 | $1.34 |
| 2,500+ | $1.30 | $1.30 |
| 3,500+ | $1.27 | $1.27 |
| 5,000+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3A per contact.
1.27mm (0.050 inches).
60V.
Surface mount.
-55°C to +125°C.
50,000 cycles minimum.
Yes, it is RoHS compliant, lead free, and halogen free.
