| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Resistance (Maximum @ after 50,000 cycles) | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Flammability Rating | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Option | |
| Pitch | |
| Shock | |
| Standard Package Quantity (Tape) | |
| Storage Temperature | |
| Termination Style | |
| Vibration | |
| Voltage Rating |

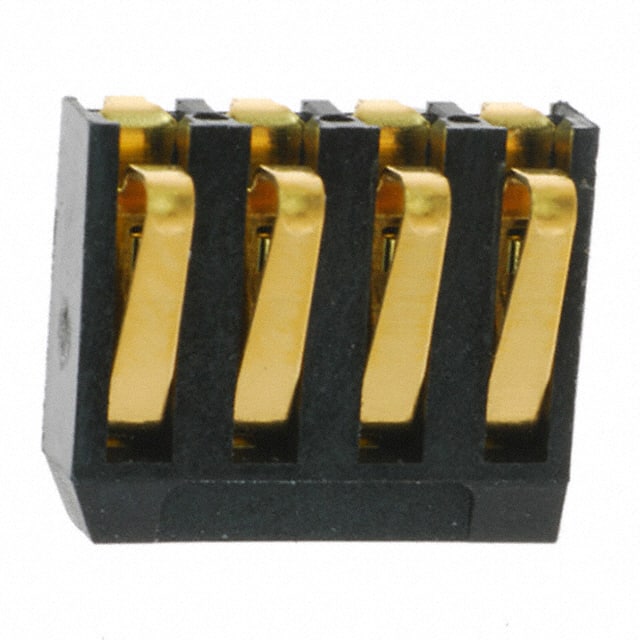

The Bourns 70AAJ-4-M0 is a spring loaded male connector from the 70AA series, featuring 4 contacts in a single row with a 2.54mm pitch. It is designed for surface mount technology (SMT) termination, making it suitable for automated pick-and-place assembly. The connector uses gold-plated copper alloy contacts with a minimum gold thickness of 30 microinches over nickel underplating, ensuring reliable electrical performance and corrosion resistance.
Electrical specifications include a current rating of 3A per contact, voltage rating of 60V, initial contact resistance of 25 milliohms maximum, and insulation resistance of 1000 megohms minimum. The connector can withstand 500 VAC dielectric withstanding voltage. It is rated for 50,000 mating cycles minimum, with contact resistance after durability not exceeding 50 milliohms. Mechanical robustness is demonstrated by vibration resistance of 30 G (10-2000 Hz) and shock resistance of 100 G. The normal force is 80 grams minimum at a working height of 0.25mm.
The insulator is molded from glass-reinforced thermoplastic with UL 94V-0 flammability rating. The operating temperature range is -55°C to 125°C. The connector is RoHS compliant, lead free, and halogen free per Bourns definition. Moisture sensitivity level is MSL 1 (unlimited floor life). Packaging options include tube or embossed tape with 750 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 30+ | $1.17 | $1.17 |
| 60+ | $1.11 | $1.11 |
| 90+ | $1.08 | $1.08 |
| 150+ | $1.04 | $1.04 |
| 210+ | $1.02 | $1.02 |
| 300+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 contacts in a single row.
The pitch is 2.54mm (0.100 inches).
3A per contact.
60V.
Surface mount (SMT).
-55°C to 125°C.
50,000 cycles minimum.
