| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

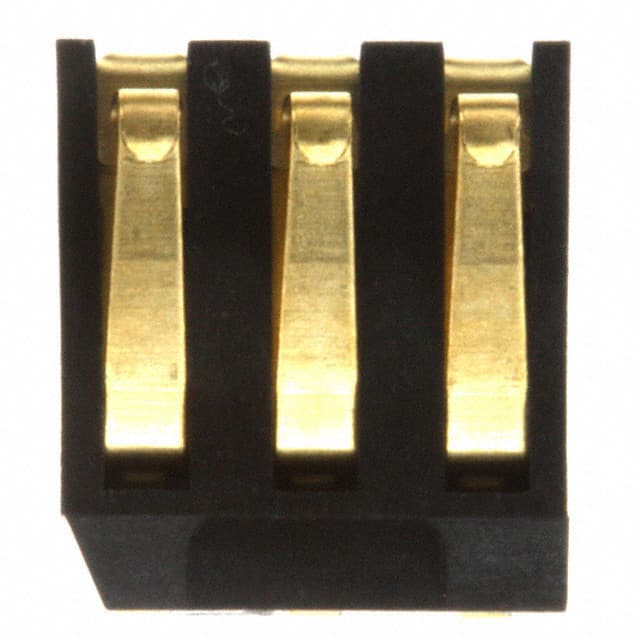

Bourns 70AAJ-3-M0 is a spring loaded rectangular connector with three male compression contacts arranged in a single row. The connector is surface mount compatible and uses a 2.54mm (0.100 inch) pitch, which aligns with standard PCB pad layouts.
The contact base material is copper alloy, plated with gold to a thickness of 30.0µin (0.76µm). This finish supports reliable electrical contact in repeated connection cycles. The male compression contact type is suited to spring-loaded interconnect systems where a compressible mating point is required.
This component belongs to the Connectors, Interconnects / Rectangular Connectors / Spring Loaded category. Its compact 3-position configuration makes it appropriate for space-limited board-to-board assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.39 | $1.39 |
| 10+ | $0.95 | $0.95 |
| 120+ | $0.88 | $0.88 |
| 280+ | $0.79 | $0.79 |
| 520+ | $0.74 | $0.74 |
| 1,000+ | $0.73 | $0.73 |
| 2,520+ | $0.69 | $0.69 |
| 5,000+ | $0.68 | $0.68 |
| 10,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 70AAJ-3-M0 has 3 contacts arranged in a single row.
The connector pitch is 2.54mm (0.100 inches).
The connector is designed for surface mount soldering.
Contacts are gold plated with 30.0µin (0.76µm) thickness over a copper alloy base.
The 70AAJ-3-M0 is a male compression contact connector.
The connector has one row of contacts.
