| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Area Plating | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Resistance (Maximum @ after 50,000 cycles) | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Normal Force | |
| Number of Contacts | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Options | |
| Pitch | |
| Shock | |
| Storage Condition | |
| Tape & Reel | |
| Underplating Material | |
| Underplating Thickness | |
| Vibration | |
| Voltage Rating |

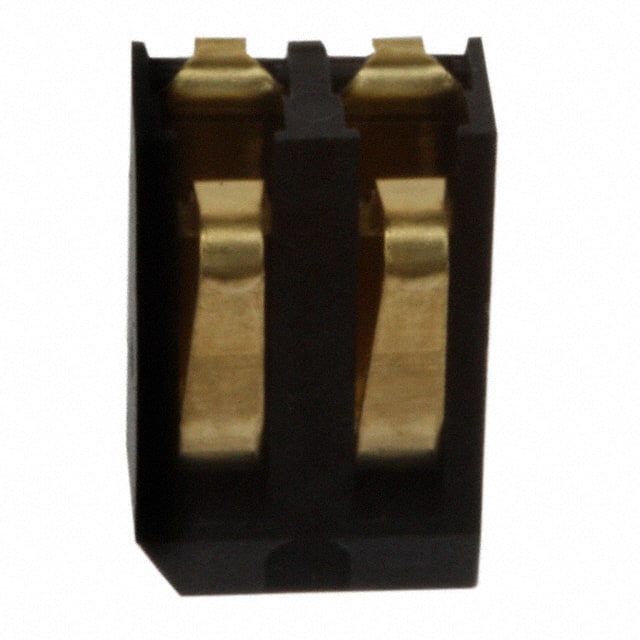

The Bourns 70AAJ-2-M0G is a 2-position male compression contact connector featuring a 2.54mm pitch and height, designed for surface mount applications. It is part of the 70AA series and offers twin hot contacts with a symmetrical pad layout for reliable board-to-board connections.
The contact material is copper alloy with 30µ" min gold over nickel plating, ensuring low contact resistance of 25 mΩ max (initial) and high durability of 50,000 cycles minimum. The connector is rated for 3A per contact and 60V, with dielectric withstanding voltage of 500 VAC and insulation resistance of 1000 MΩ min.
It is suitable for operating temperatures from -55°C to 125°C, and is MSL 1 compliant. The connector is RoHS and halogen free compliant. Packaging options include tube or embossed tape (750 pieces per reel), and it is pick and place compatible for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.84 | $0.84 |
| 50+ | $0.80 | $0.80 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.71 | $0.71 |
| 750+ | $0.66 | $0.66 |
| 1,500+ | $0.63 | $0.63 |
| 2,250+ | $0.61 | $0.61 |
| 3,750+ | $0.59 | $0.59 |
| 5,250+ | $0.57 | $0.57 |
| 7,500+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 contacts.
0.100" (2.54mm).
3 A per contact.
60 V.
Surface Mount.
Gold over nickel, with 30 µ" gold plating.
-55°C to 125°C.
